| Product Code | Wattage | Lumen Output | Efficacy | CCT | Dimensions | Downloads |
|---|---|---|---|---|---|---|
| MATRIX0312-PS-SM | 25 W 28 W 32 W 36 W | 3200 / 3300 / 3200 lm 3600 / 3800 / 3600 lm 3900 / 4100 / 3800 lm 4200 / 4500 / 4200 lm | 112 / 123 / 112 lm/W 109 / 121 / 109 lm/W 107 / 120 / 107 lm/W 105 / 119 / 105 lm/W | 4000 / 4500 / 5000 K | 1195 x 295 x 33 mm | |
| MATRIX18W0303 | 18 W | 1870 / 2040 / 1890 lm | 101 / 116 / 103 lm/W | 4000 / 4500 / 5000 K | 295 x 295 x 33 mm | |
| MATRIX18W0306 | 18 W | 2050 / 2000 / 2090 lm | 114 / 111 / 116 lm/W | 4000 / 4500 / 5000 K | 595 x 295 x 33 mm | |
| MATRIX25W0312 | 25 W | 3200 / 3300 / 3200 lm | 112 / 123 / 112 lm/W | 4000 / 4500 / 5000 K | 1195 x 295 x 33 mm | |
| MATRIX48W0612 | 48 W | 5500 / 5700 / 5500 lm | 120 / 133 / 122 lm/W | 4000 / 4500 / 5000 K | 1195 x 595 x 33 mm | |
| MATRIX25W0606 | 25 W | 3200 / 3300 / 3200 lm | 112 / 123 / 112 lm/W | 4000 / 4500 / 5000 K | 595 x 595 x 33 mm | |
| MATRIX0312-PS | 25 W 28 W 32 W 36 W | 3200 / 3300 / 3200 lm 3600 / 3800 / 3600 lm 3900 / 4100 / 3800 lm 4200 / 4500 / 4200 lm | 112 / 123 / 112 lm/W 109 / 121 / 109 lm/W 107 / 120 / 107 lm/W 105 / 119 / 105 lm/W | 4000 / 4500 / 5000 K | 1195 x 295 x 33 mm | |
| MATRIX0606-PS | 25 W 28 W 32 W 36 W | 3200 / 3300 / 3200 lm 3600 / 3800 / 3600 lm 3900 / 4100 / 3800 lm 4200 / 4500 / 4200 lm | 112 / 123 / 112 lm/W 109 / 121 / 109 lm/W 107 / 120 / 107 lm/W 105 / 119 / 105 lm/W | 4000 / 4500 / 5000 K | 595 x 595 x 33 mm |
MATRIXG3
Panels
Efficient and Versatile
Applications
Showrooms, Offices, Boardroom / Meeting Rooms, Function Areas, Retail Spaces, Hotel Common Areas, Storage Rooms, Manufacturing Facilities, Medical Facilities
Overview
MATRIX G3 is an energy-efficient backlit LED panel with tritone colour technology and a flicker-free driver. It is available in a wide range of sizes and several accessory options, making it a highly versatile solution for different applications.
Details
MATRIX G3 is an energy-efficient backlit LED panel with tritone colour technology. It is available in a wide range of sizes and several accessory options, making it a highly versatile solution for different applications.
This LED panel is an ideal commercial solution for suspended ceiling applications. It features power switchable capabilities which helps in reducing inventory levels and simplifies order complexity. It is designed to fit T-bar grid suspended ceilings, making installation easy. The panel has an IP40 rating, steel body material, and a 1.2m flex and plug power lead.

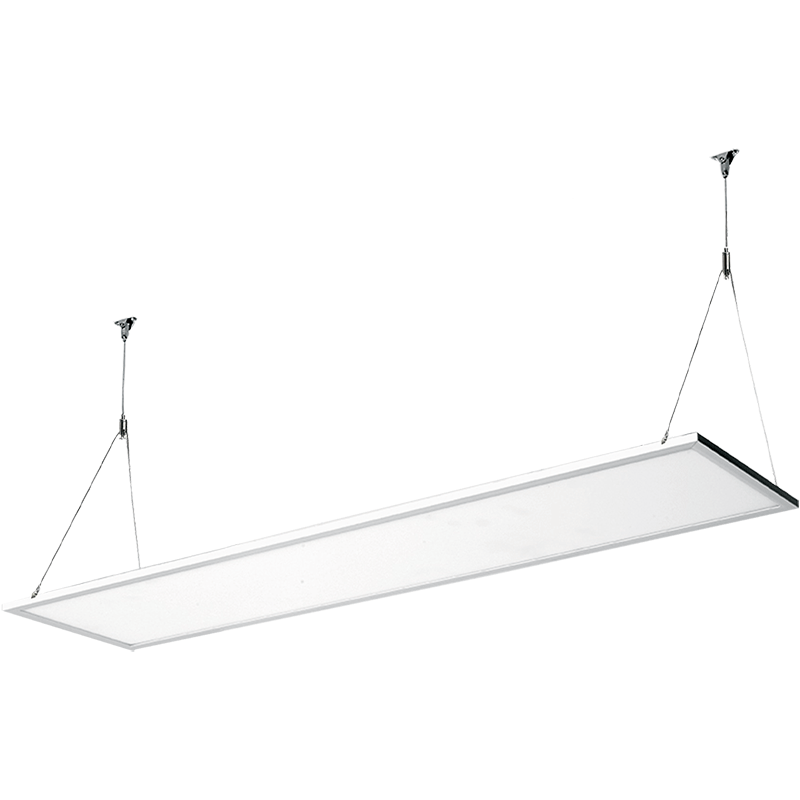

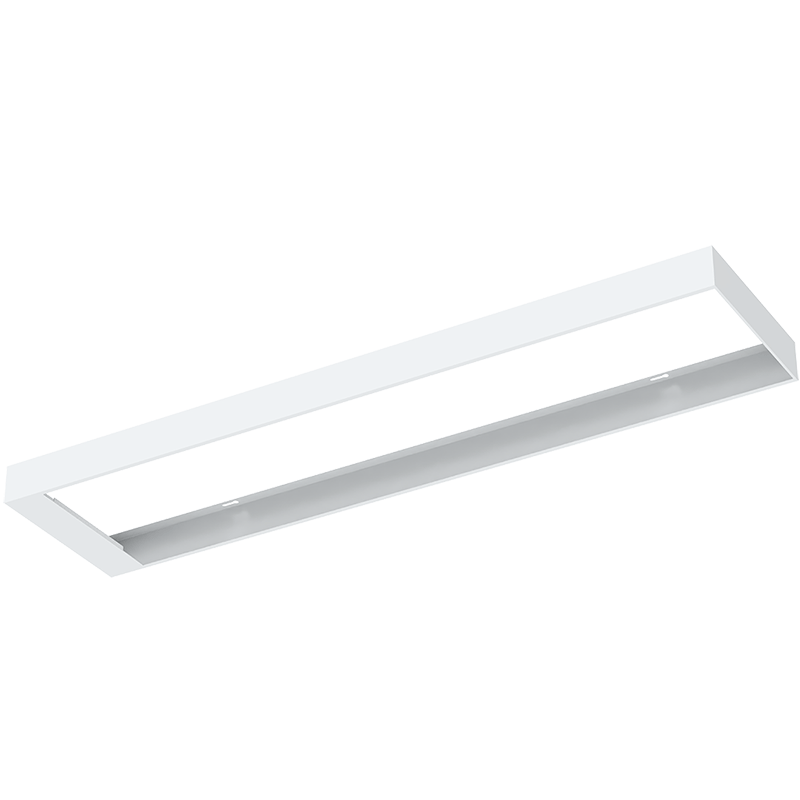

MATRIX G3 comes with various mounting accessories, which enhance its application possibilities. Its flicker-free driver increases health and productivity, and it is also available with an emergency (EM) kit that provides added security and safety. The panel comes with a 5 year warranty and an option to choose from a large range of dimmable models.
Features & Benefits
Tritone colour selectable
Provides the choice of light hues from a single luminaire
Flicker-free driver
Increase productivity and lowers eye strain
Extensive model range
Covers a diverse range of applications
Commercial panel light design
Suitable for suspended ceilings applications
Power switchable
Adjust the light to suit the requirements
Low profile design
Suitable for very shallow ceiling spaces
Painted aluminium housing
Enhances the premium look and feel
Modernised design
Provides high end appearance
Adaptable mounting possibilities
Choose which mounting option best suits the application
Choice of sizes to choose from
Adaptable to suit various requirements
Exceptional performance
High efficacy rating to promote energy saving
High ambient temperature rating (>40°C)
Long lasting in hot environments
Optional DALI converter accessory available
Designed to integrate into a larger ecosystems.
Optional DALI model available
Designed to integrate into a larger ecosystems.
Large power options
Offering the right amount of light for the application
HACCP approved (Model Dependent)
Suitable for food manufacturing areas
