SKYLUX^G5

Highbays and Lowbays

State-of-the-art highbay solution.

Applications

Warehouse, Storage Facilities, Manufacturing Facilities, Cool Rooms, General Industrial

Overview

9-Highbays-in-1, the SKYLUX G5 is 3 power switchable and tritone selectable. Offering precision optics for improved performance and a tough aluminium housing with optimised heat dissipation, to ensure prolonged LED life.

Find a Stockist

Details

Product Code	Wattage	Lumen Output	Efficacy	CCT	Dimensions	Downloads
SKYLUX120W-G5	70 W 100 W 120 W	14,228 / 14,604 / 14,076 lm 17,500 / 18,163 / 17,347 lm 20,222 / 21,357 / 20,209 lm	180 / 187 / 179 lm/W 174 / 186 / 174 lm/W 169 / 184 / 170 lm/W	4000 / 5000 / 5700 K	Ø280 x 169 mm	Datasheet Installation Guide
SKYLUX200W-G5	150 W 170 W 200 W	26,983 / 27,766 / 26,651 lm 28,632 / 29,581 / 28,278 lm 33,995 / 36,137 / 34,435 lm	181 / 192 / 179 lm/W 179 / 190 / 176 lm/W 172 / 188 / 173 lm/W	4000 / 5000 / 5700 K	Ø320 x 169 mm	Datasheet Installation Guide

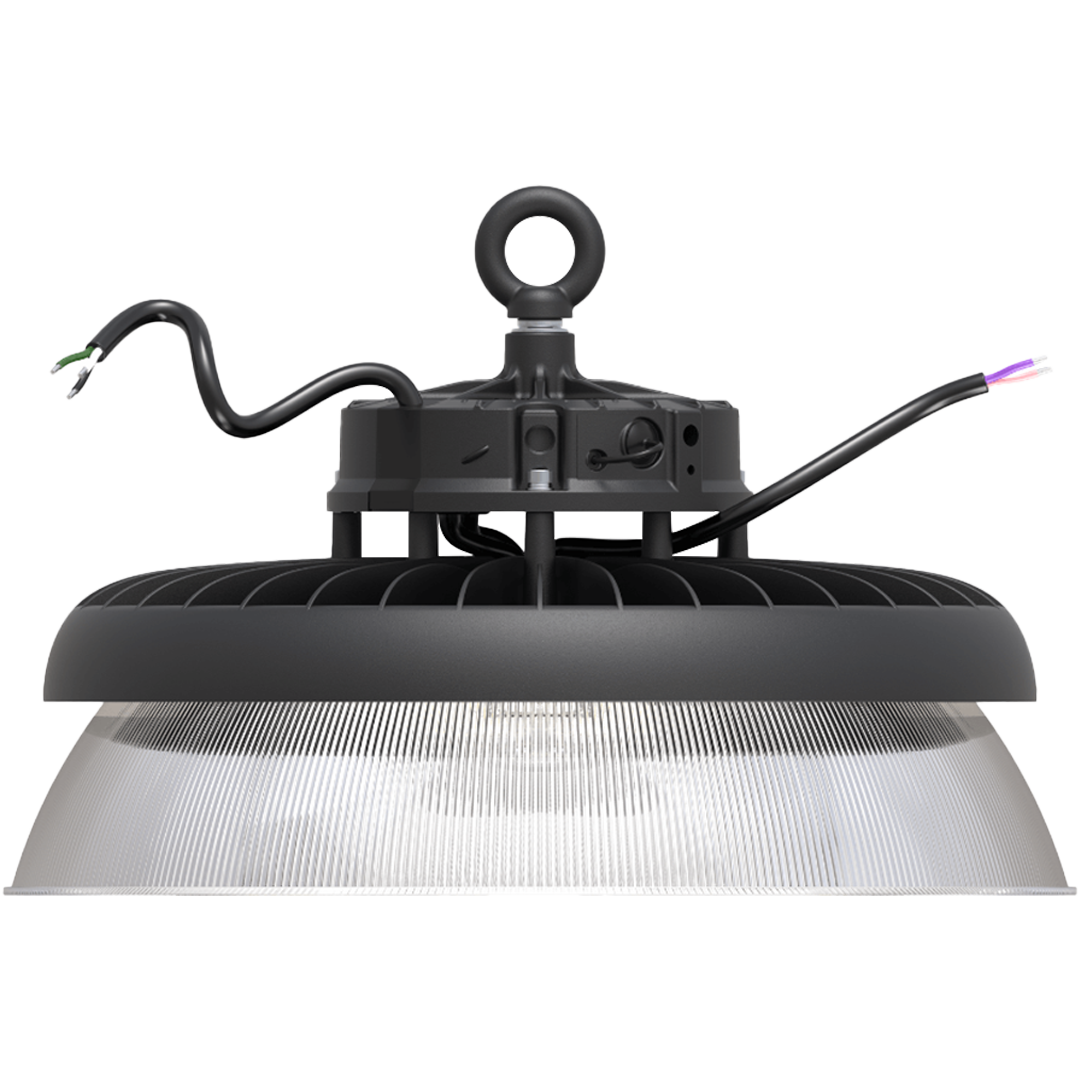

Introducing SKYLUX G5, the latest and most advanced LED highbay lighting innovation from Haneco. Featuring a durable aluminium housing with optimised heat dissipation, it ensures a longer lifespan for the LEDs and improved performance with precision optics.

With its IP65 and IK08 rating, SKYLUX G5 highbays are ideal for warehouses, factories, sheds, industrial and large commercial spaces, and come with a 5 year warranty. Offering power switchable modes and a lumen efficacy in excess of 180lm/w, SKYLUX G5 stands out as highly energy-efficient compared to others on the market. It comes with an IP65 and IK08 rating, ensuring its longevity in harsh environments. Additionally, it is KASTA compatible with a 120º beam angle* and CRI 80+.

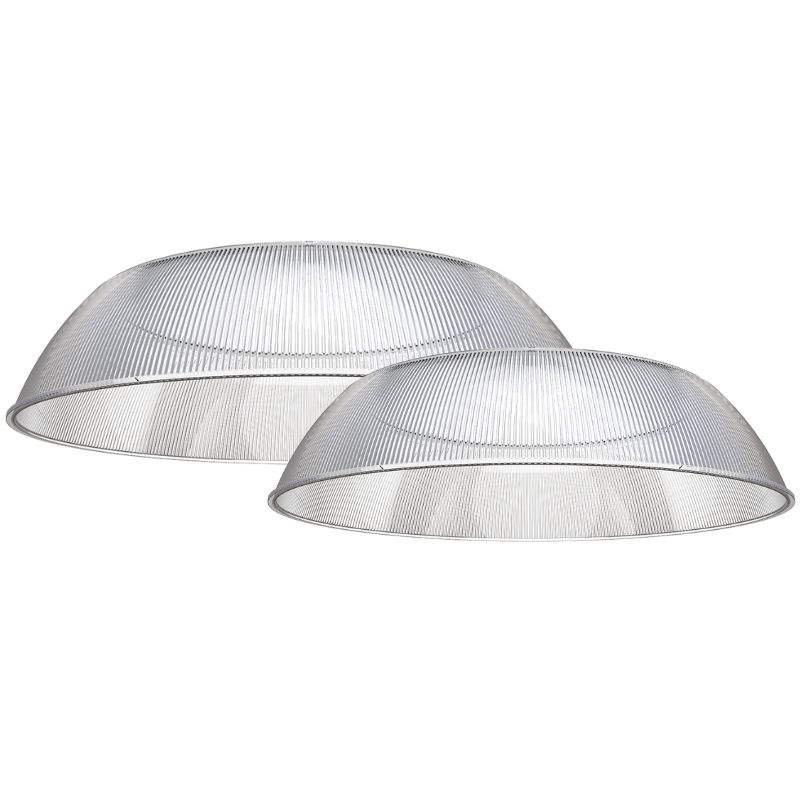

SKYLUX G5 offers a wide range of accessories such as a programmable plug-and-play Smart Motion Sensor, Remote Controller, Surface Mount Bracket, Prismatic Reflectors, *Lens Options for reduced beam angles and DALI converter.
