| Product Code | Wattage | Lumen Output | Efficacy | CCT | Dimensions | Downloads |
|---|---|---|---|---|---|---|
| SKYLUX200W4K-LIN | 100 W 150 W 200 W | 16408 lm 24132 lm 30197 lm | 165 lm/W 161 lm/W 153 lm/W | 4000 K | 1131 x 115 x 110 mm |
SKYLUX LINEAR
Highbays and Lowbays
Power Switchable LED Linear Highbay
Applications
Warehouse, Storage Facilities, Storage Rooms, Indoor Recreation, Kitchen / Food Prep
Overview
SKYLUX LINEAR is high-performance linear LED highbay range designed for efficient illumination in industrial and commercial spaces. With dedicated beam angle options and flexible mounting solutions, it delivers optimised lighting for both wide open areas and narrow aisle applications.
Details
SKYLUX LINEAR is a premium range of linear LED highbays
engineered to provide efficient, reliable illumination for warehouses and
industrial environments. Featuring a sleek, low-profile design, it offers
dedicated beam angle options for both narrow and wide aisle applications,
together with flexible mounting solutions to suit a wide range of
installations.
Constructed from a robust die-cast aluminium housing, SKYLUX LINEAR delivers excellent thermal performance for long-term reliability. Rated IP65 and IK10, it is designed to withstand demanding industrial environments. The luminaire can be installed as either a surface-mounted or suspended fitting, offering maximum installation flexibility.
Available in 200W and 240W configurations (240W made to order), SKYLUX LINEAR can be configured with a range of optional accessories, including:
- Plug-in microwave sensor

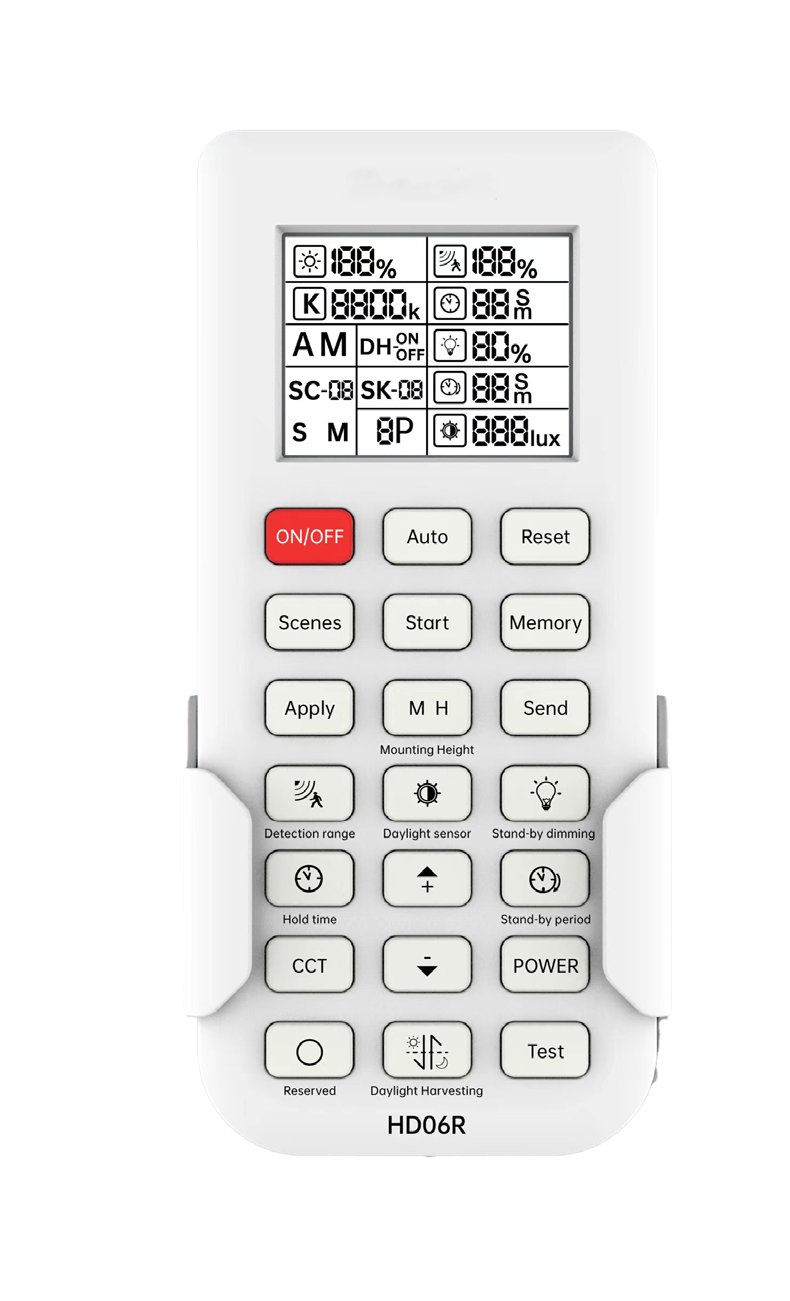

- Sensor remote controller
- Straight Bracket for Connecting two SKYLUX LINEAR
- Suspension kit
- 30° × 70° beam angle lens
- DALI converter
Backed by a 5-year warranty, SKYLUX LINEAR is an ideal lighting solution for warehouses, manufacturing facilities, distribution centres, transport terminals, airport buildings, and other large commercial and industrial applications.
Features & Benefits
Engineered and optimised optical lens
Premium performance for premium applications
Exceptional performance
High efficacy rating to promote energy saving
Various accessories available
Tailor the luminaire to meet the application requirements
Optional plug in motion sensor
Retrofittable option to assist in energy usage or security lighting
Flicker-free driver
Increase productivity and lowers eye strain
Power switchable
Adjust the light to suit the requirements
IP65 and IK10 Rating
Robust housing to withstand damage
Accessories

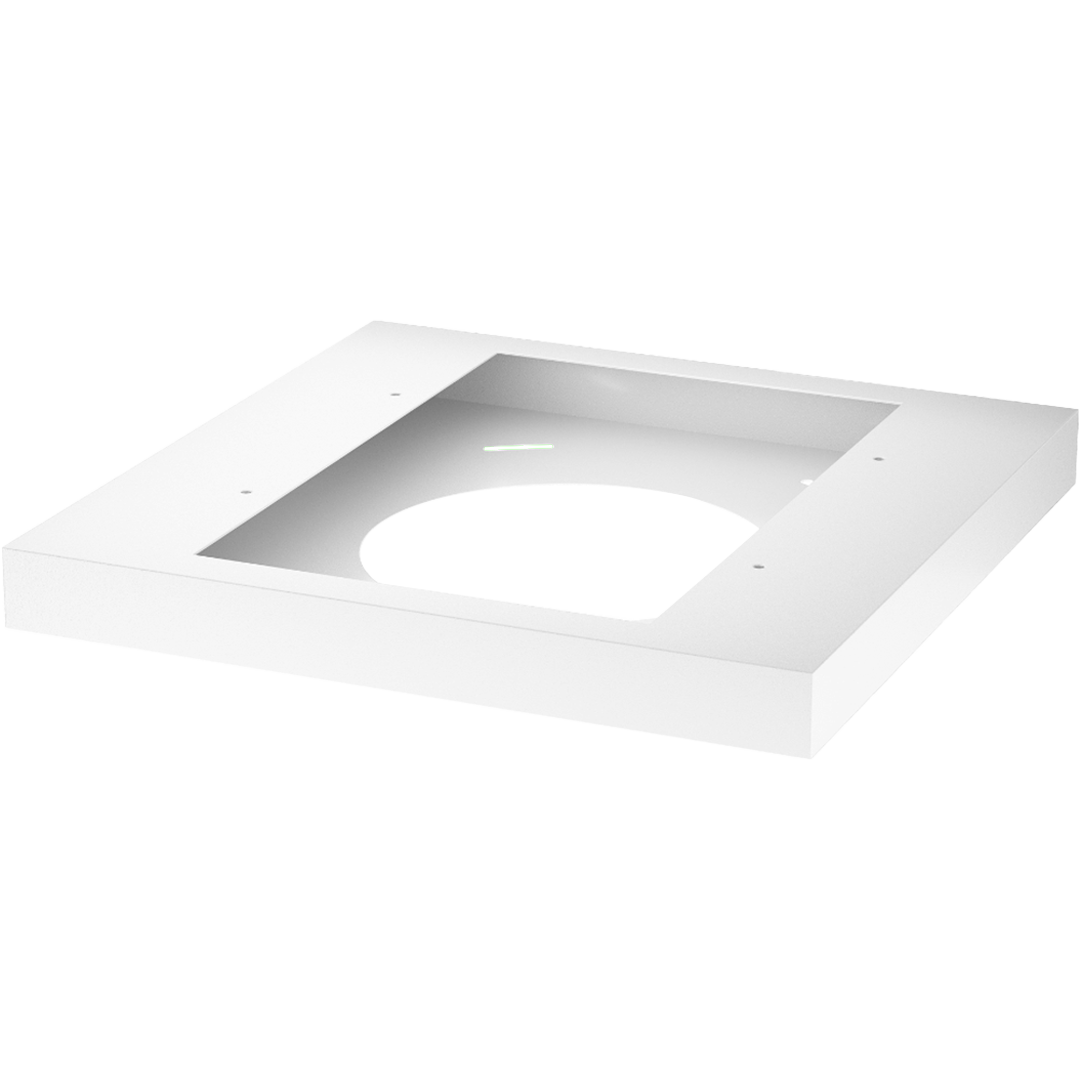

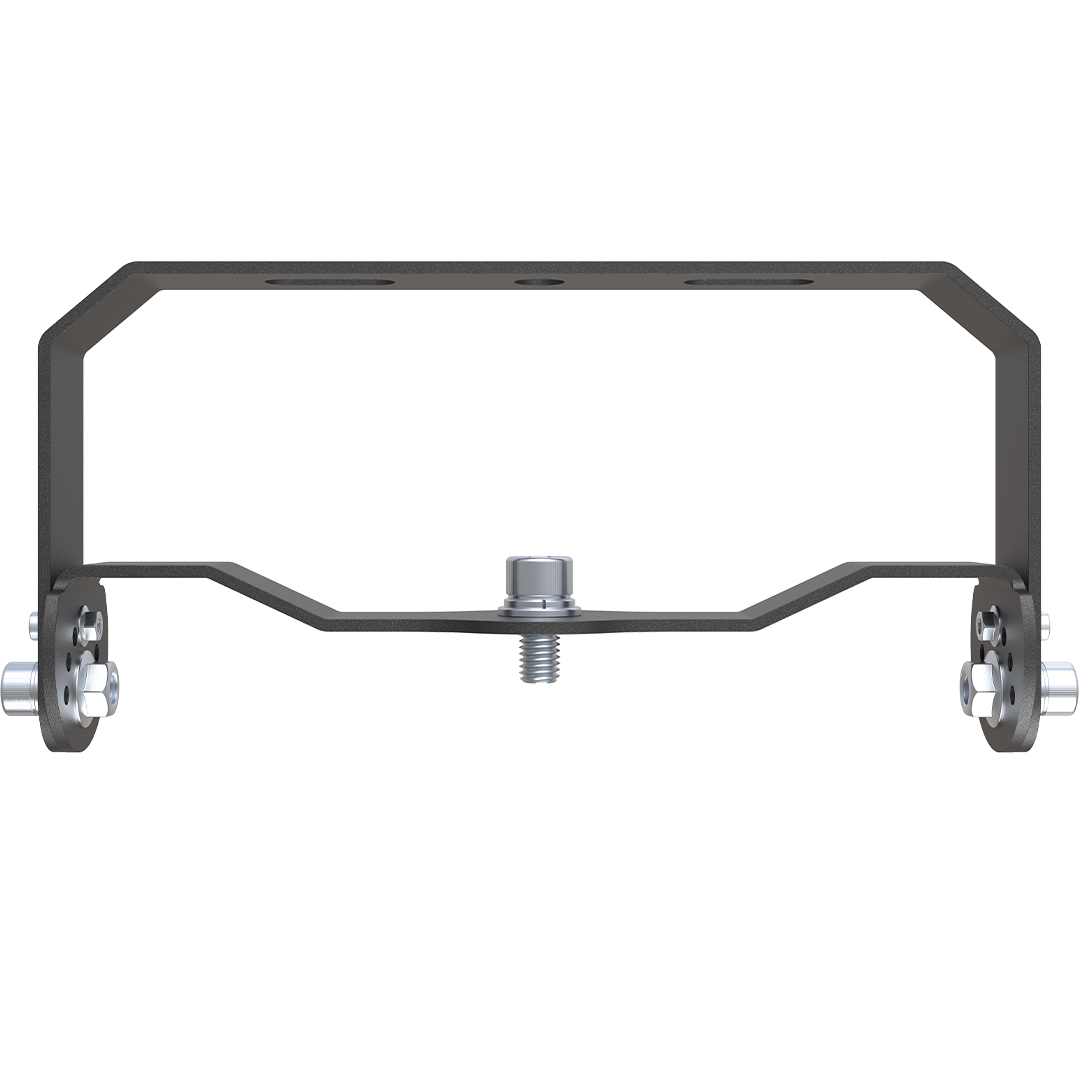

Mounting Supports (Highbays and Lowbays)
Haneco offers a range of mounting support accessories such as brackets, poles, suspension kits, surface mount frames...
View Details

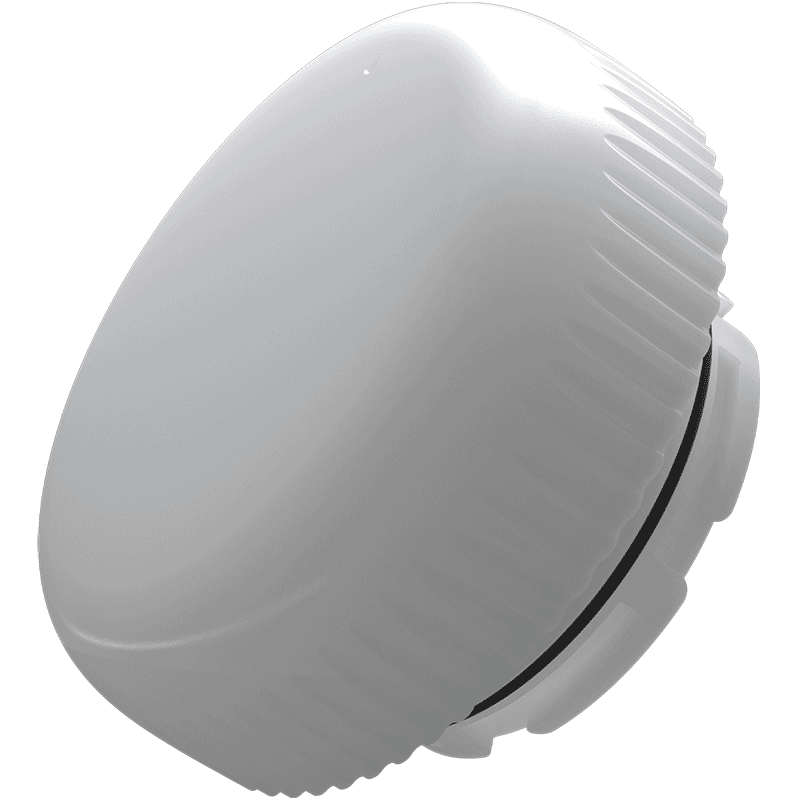

Motion Sensors (Highbays and Lowbays)
View Details

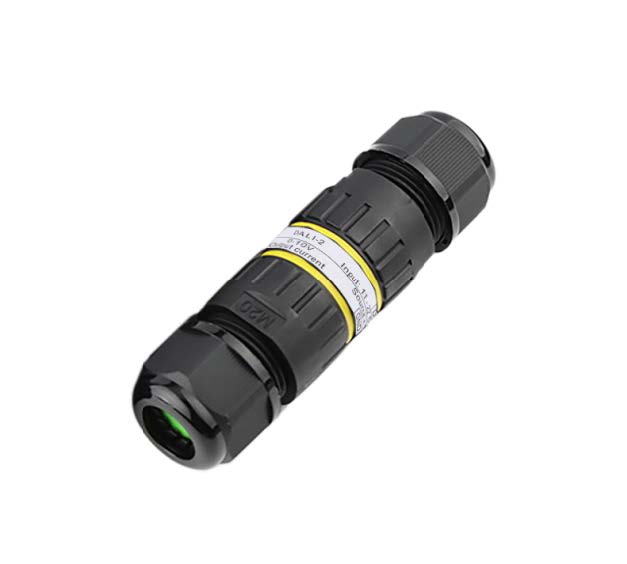

DALI Converter(Highbays)
The Haneco‑DC CU Bridge Series is a high‑performance DALI‑to‑0–10V dimming converter designed to deliver reliable, flexible and...
View Details
