| Product Code | Wattage | Lumen Output | Efficacy | CCT | Dimensions | Downloads |
|---|---|---|---|---|---|---|
| TERRAEX12-DALI | 52W | 6157 / 6674 / 6523 lm | 119 / 133 / 126 lm/W | 3000 / 4000 / 5000 K | 1307 x 138 x 115 mm | |
| TERRAEX06-DALI | 36W | 3924 / 4230 / 4112 lm | 110 / 123 / 115 lm/W | 3000 / 4000 / 5000 K | 699 x 138 x 115 mm |
TERRA X
Weatherproof Battens
Designed to Survive. Built to Perform.
Applications
Carparks, Function Areas, Garages, General Industrial, Hangers, Manufacturing Facilities, Public Facilities, Outdoor Recreation, Shed, Side of Building, Storage Facilities, Warehouses
Overview
The TERRA X LM6 aluminium batten delivers powerful, reliable illumination in extreme conditions. With IP66 and IK10 protection, DALI 2.0 dimming, and CCT selectable (3000K/4000K/5000K) performance, it withstands vandalism, corrosion, and coastal exposure. Available in 36W and 52W, TERRA X combines strength, efficiency, and precision for industrial, mining, and public-infrastructure applications.
Details
TERRA X – Built for the Harshest Environments
The TERRA X batten range is engineered for extreme durability and uncompromising performance in the toughest environments. Constructed from LM6 marine-grade aluminium with an IK10 impact rating and IP66 weatherproof protection, it’s designed to withstand high-vandal, coastal, mining, and correctional applications with ease.
Available in 0.6m (36W) and 1.2m (52W) models, TERRA X delivers up to 6,760 lumens with efficacy up to 130 lm/W, ensuring exceptional illumination with long-life reliability. Featuring DALI 2.0 dimming, CRI 80, and CCT selectable (3000K/4000K/5000K) functionality, it offers both control and versatility across demanding industrial and public environments.
With its rugged die-cast aluminium housing, UV-stabilised diffuser, and efficient thermal design, TERRA X sets a new benchmark for lighting performance where strength and reliability are non-negotiable.
Features & Benefits
Tritone colour selectable
Provides the choice of light hues from a single luminaire
IP66 and IK10 rating
Robust housing to withstand damage
Durable UV stabilised polycarbonate
Long lasting body for outdoor installations
Diecast aluminium body
High quality material used for excellent thermals
Related Products

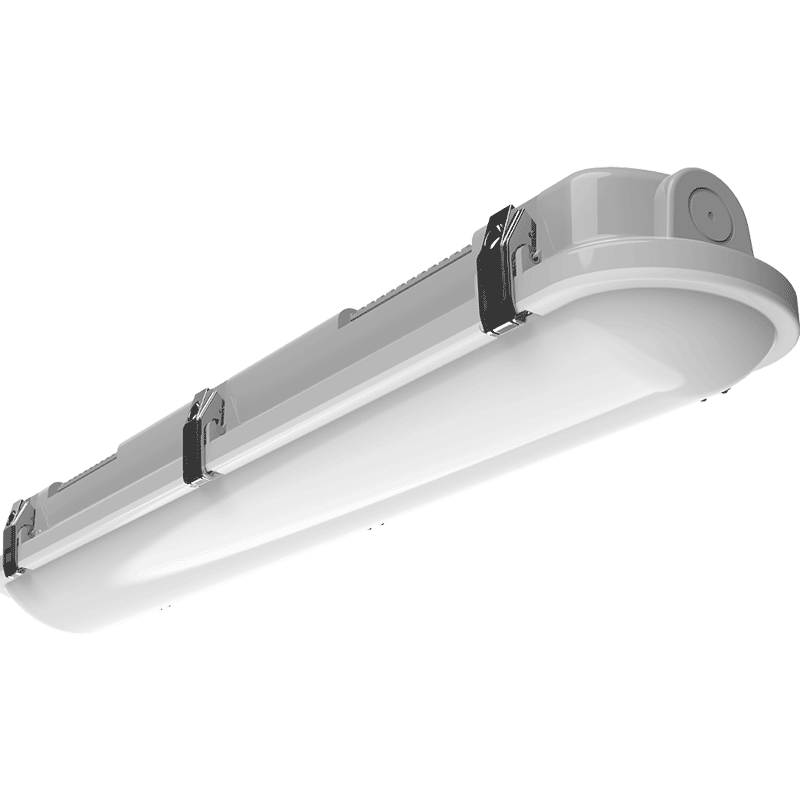

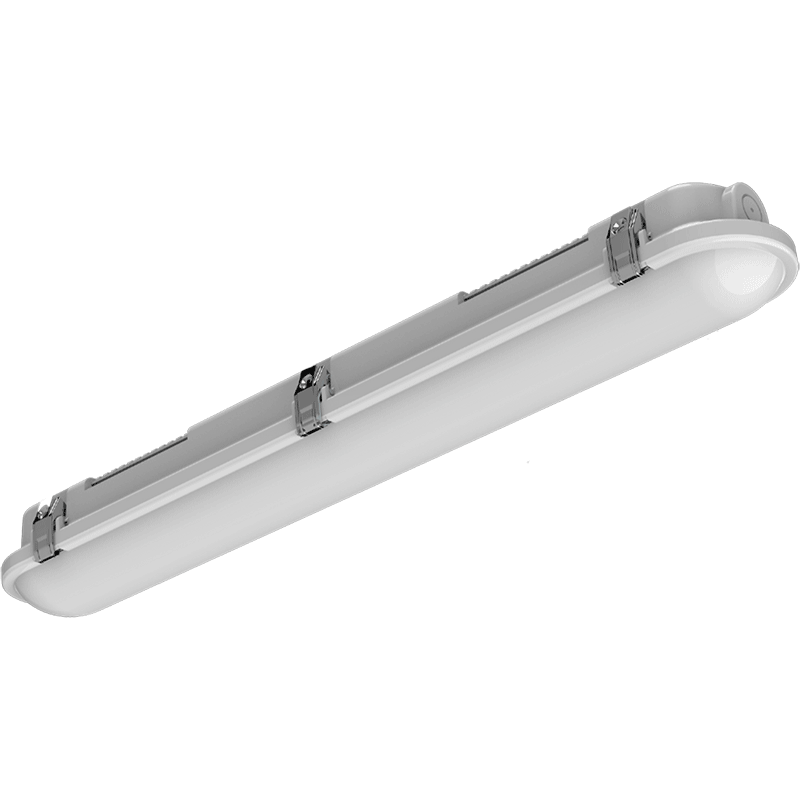

DURA
The DURA batten features IP65 ingress protection, IK08 impact resistance which makes it the right choice for...
View Details

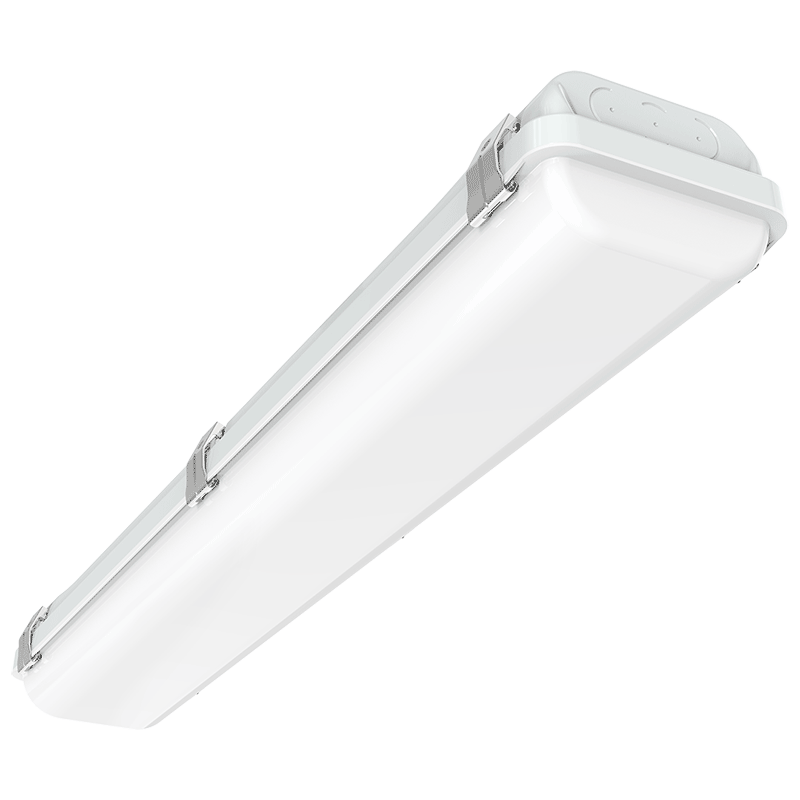

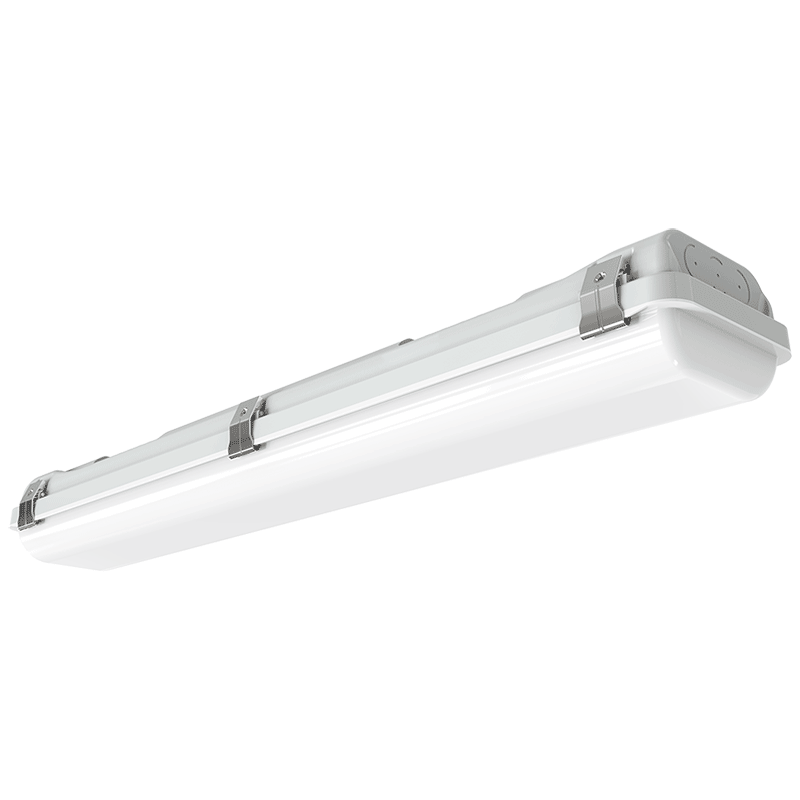

TRIPROOFG2
