| Product Code | Wattage | Lumen Output | Efficacy | CCT | Dimensions | Downloads |
|---|---|---|---|---|---|---|
| TRIPROOF06-YG | 20 W | G: 2072 lm Y: 2262 lm | G: 114 lm/W Y: 127 lm/W | 618 x 116 x 74 mm | ||
| TRIPROOF06-YG-EM | 20 W | G: 2129 lm Y: 2209 lm | G: 103 lm/W Y: 111 lm/W | 618 x 116 x 74 mm | ||
| TRIPROOF12-YG | 20 W 40 W | G: 2556 / Y: 2564 lm G: 4431 / Y: 4634 lm | G: 140 / Y: 143 lm/W G: 117 / Y: 127 lm/W | 1215 x 116 x 74 mm | ||
| TRIPROOF12-YG-EM | 20 W 40 W | G 2500 / Y 2530 lm G 4226 / Y 4708 lm | 122 / 125 lm/W 107 / 120 lm/W | 1215 x 116 x 74 mm |

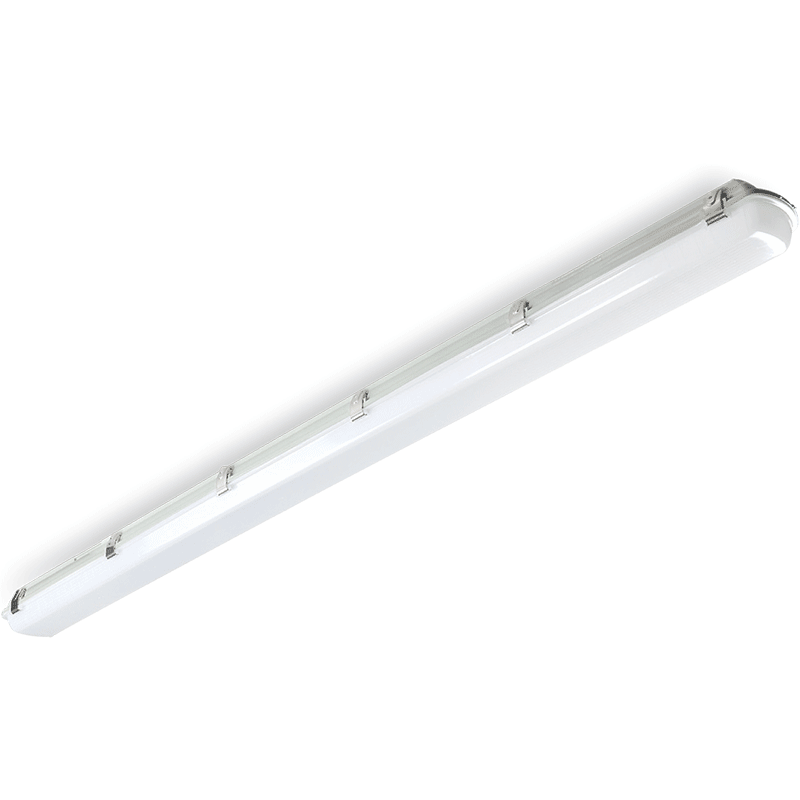

TRIPROOFYG
Battens
Tried and trusted design.
Applications
Kitchen / Food Prep,Awnings,Side of Building,Hangers,Manufacturing Facilities,General Industrial,Medical Facilities
Overview
TRIPROOF YG are weatherproof LED battens with a striking robust design and suitability for higher ambient temperatures. This model offers a specific Yellow colour output suitable for attracting fewer insects than traditional white lights, and a specific Green colour output suitable for eyewash bays.
Details
The TRIPROOF YG is a series of weatherproof LED battens that have a sturdy design and can withstand elevated ambient temperatures. This model comes with a specific yellow color output that is suitable for attracting fewer insects than traditional white lights, and a specific green color output that is perfect for eyewash bays.
With an IP65 and IK08 rating, this weatherproof LED batten is ideal for bathrooms and general outdoor applications. The power switchable feature allows you to adjust the light to your liking, while the easy terminal block access makes the installation process easier. It is long-lasting and can withstand hot environments due to its high ambient temperature rating (>40°C). It also comes in emergency versions.
The TRIPROOF YG is available in various sizes, making it adaptable to different application requirements. It has a durable UV-stabilized polycarbonate body, making it ideal for outdoor installations. The tamper-proof screws make it vandal-resistant and secure, while the simple 2-piece flip-open design provides quick and easy installation. The versatile mounting options expand the lighting possibilities with different mounting configurations.
TRIPROOF YG is perfect for outdoor recreation, awnings, garages, sheds, carports, the side of buildings, car parks, manufacturing facilities, general industrial, and area lighting.
Features & Benefits
IP65 and IK08 rating
Ideal for outdoor applications
Power switchable
Adjust the light to suit the requirements
Adaptable mounting possibilities
Choose which mounting option best suits the application
Yellow light output
Ideal for rural areas or high insect infested areas
Green light output
Safely guide visually impared individuals to medical aid
Easy terminal block access
Aids in improving the installation process
Choice of different lengths
Adaptable to suit various requirements
Durable UV stabilised polycarbonate
Long lasting body for outdoor installations
Tamperproof screws
Vandal resistant security
Simple 2 piece flip-open design
Provides quick & easy installation
High ambient temperature rating (>40°C)
Long lasting in hot environments
Stainless Steel (316) clips
Anti-corrosive material to aid in longevity in high corrosive areas
Product Flyer
