| Product Code | Power (Standby) | Power (Charging) | Discharge Time | Recharge Time | Classification | Downloads |
|---|---|---|---|---|---|---|
| ESD24M-SM | 1.5 W | 4.5 W | 1.5 hrs | 16 hrs | C0:E6.3 / C90:E6.3 | |
| ESD24M-SM-BK | 1.5 W | 4.5 W | 1.5 hrs | 16 hrs | C0:E6.3 / C90:E6.3 |
ESODOEDGE
Exit and Emergency
Architectural slimline design.
Applications
Laundry, Hallways, Entrance, Theatre Rooms, Carpark, Showrooms, Offices, Function Areas, Food Courts, Hotel Common Areas, Restaurants / Cafes, Retail Spaces, Storage Facilities, Manufacturing Facilities, Kitchen / Food Prep
Overview
ESODO EDGE is a super slim, double sided LED emergency exit sign for multiple surface mounting options. With its blade style and slick edge-lit design ESODO EDGE will also provide safety in high end architectural applications.
Details
ESODO EDGE is a slim LED emergency exit sign that offers multiple surface mounting options. Its blade style and edge-lit design make it ideal for high-end architectural applications. The 5-in-1 surface mount fitting provides unlimited flexibility and is easy to install.
The emergency exit sign has an IP20 rating and a viewing distance of 24m, ensuring safety throughout the building. The LiFePO4 battery complies with AS2293.3, providing peace of mind for the end-user. The sign also comes with replaceable decals suitable for different applications.
The standard version of ESODO EDGE is perfect for use in schools, offices, hotels, and retail environments. The black version is specifically designed for use in theatres, cinemas, lecture rooms, and dark rooms. Lastly, the ESODO EDGE comes with a 5-year warranty, providing additional peace of mind.
Features & Benefits
Versatile mounting options
Expand the lighting possibilities with different mounting configurations
Choice of colour finishes
Blend fitting into the existing environment seemlessly

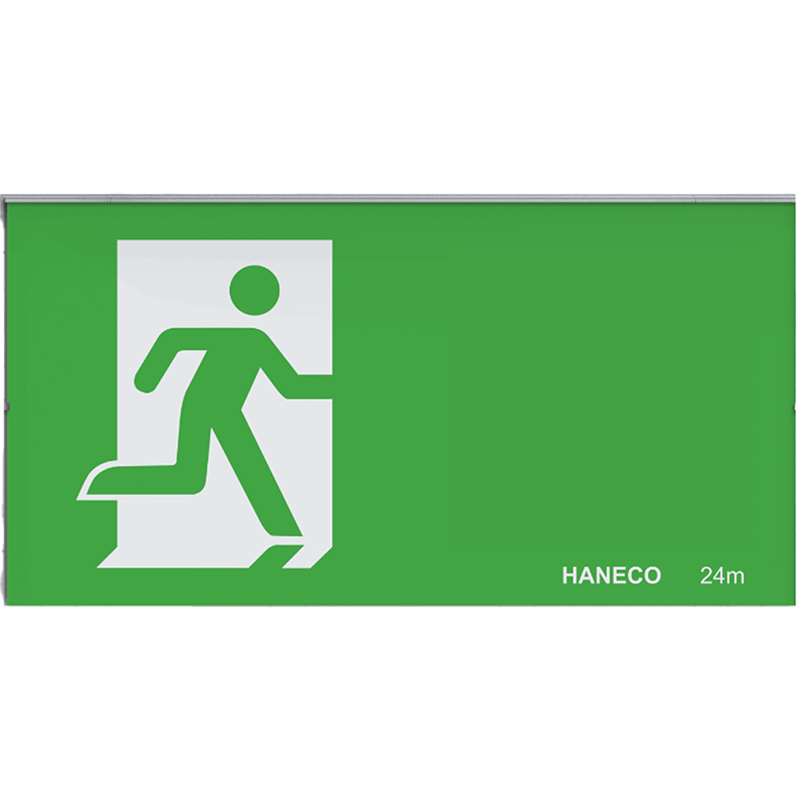

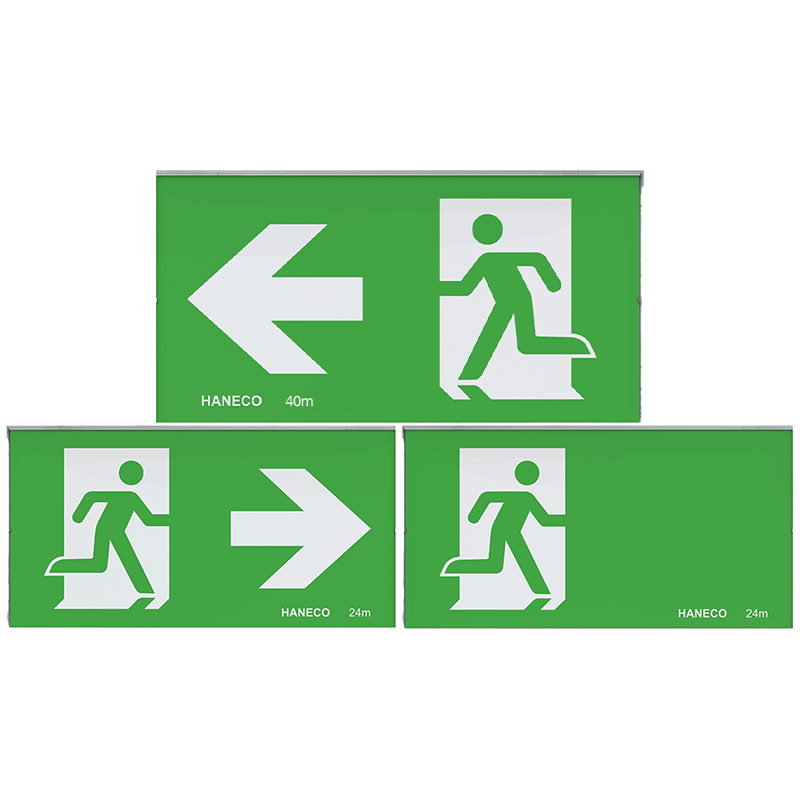

Selection of pictograms included
The correct sign for every application
24m viewing distance
Ensure safety throughout the building
Slim profile design
Suitable for high end architectural environments
Single test button
Simple and quick maintenance check
LiFeP04 battery
Complies to AS2293.3 emergency standard
Easy terminal block access (Model Dependent)
Aids in improving the installation process
Simple 2 piece design (Model Dependent)
Provides quick & easy installation
Integrated driver with cable and plug (Model Dependent)
Provides quick and easy installation
Related Products

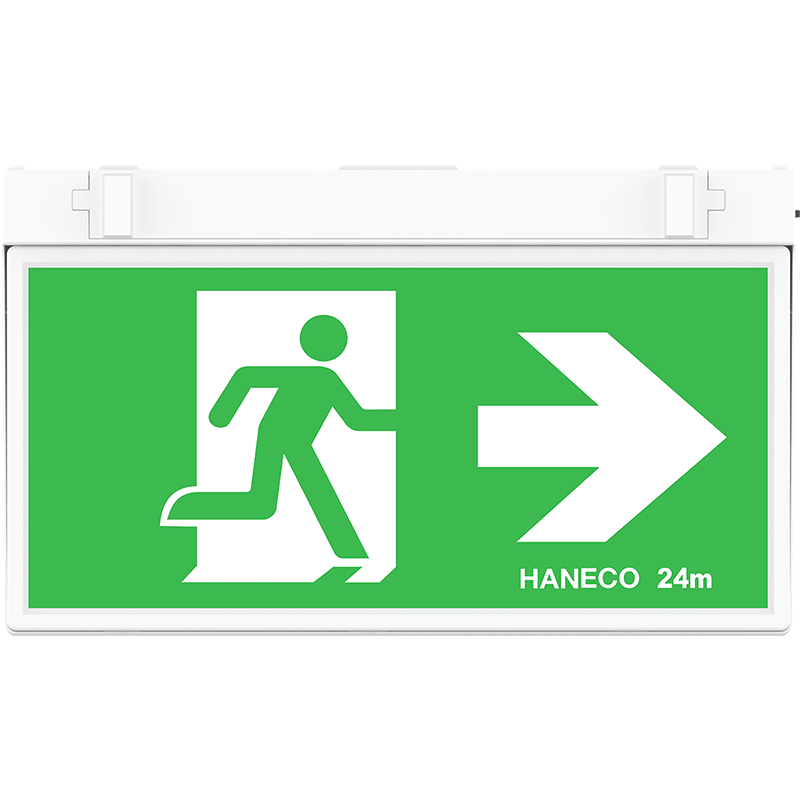

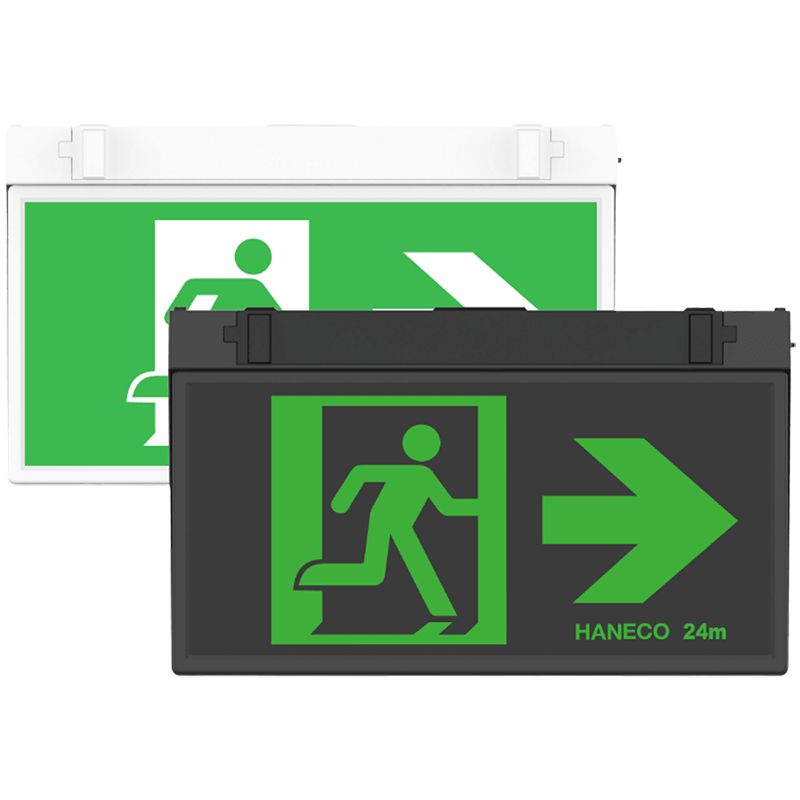

ESODO
ESODO is a slim double-sided 24m LED emergency exit sign presented in a conventional and discrete box...
View Details

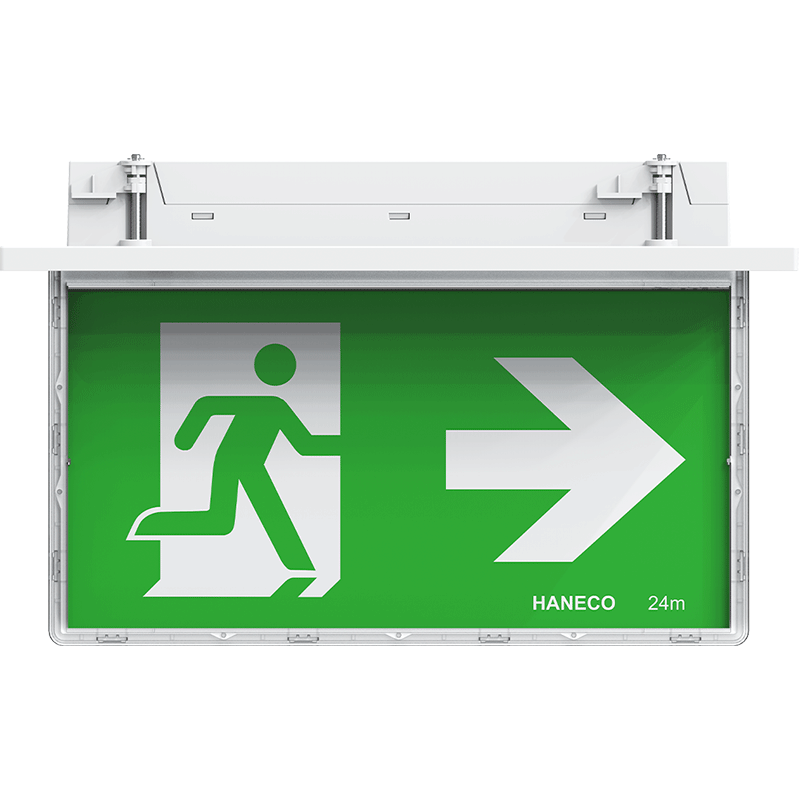

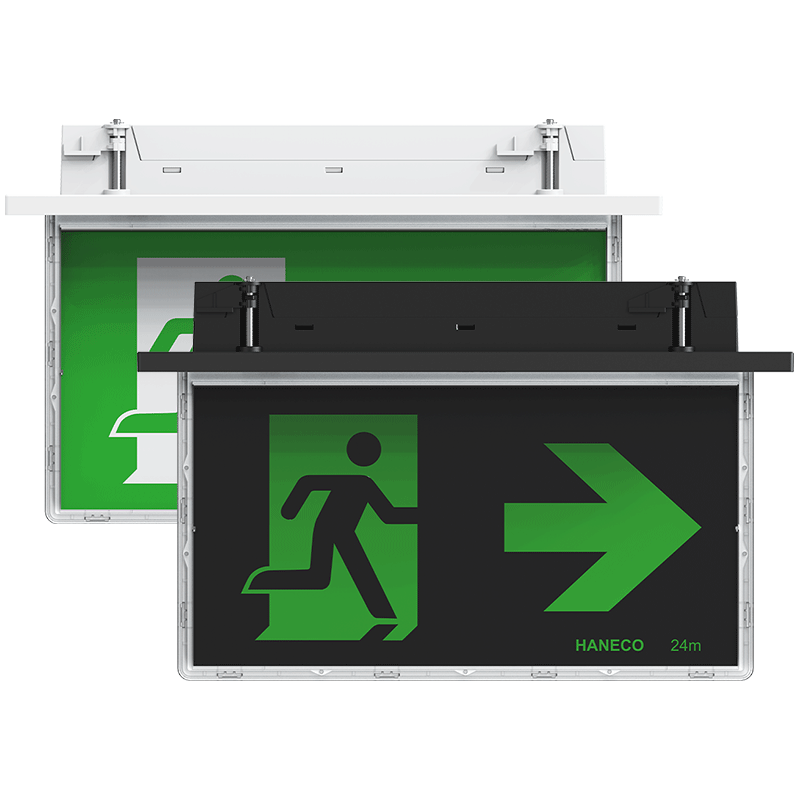

ESODOEDGE Recessed
ESODO EDGE (recessed) is a super slim, double sided LED emergency EXIT sign for a streamlined hidden...
View Details

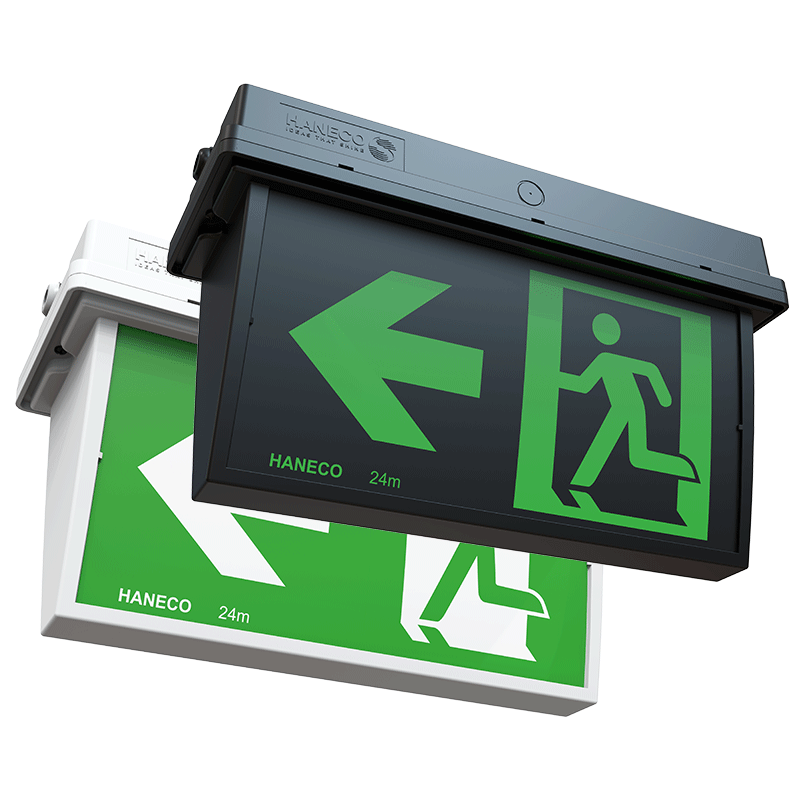

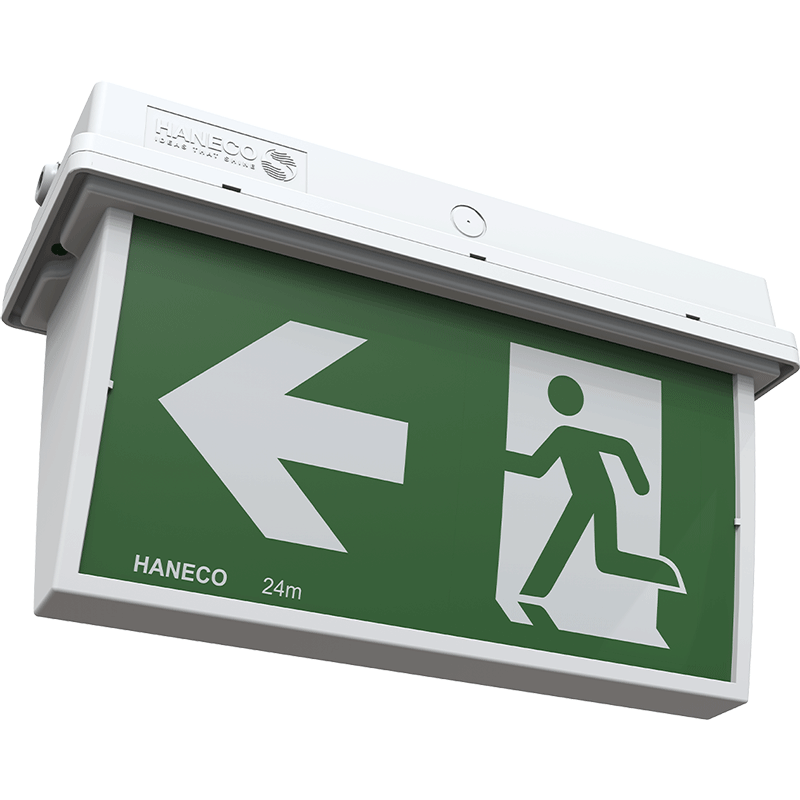

ESODOIP65
