| Product Code | Wattage | Lumen Output | Efficacy | CCT | Dimensions | Downloads |
|---|---|---|---|---|---|---|
| LMSTPRO60W840T3 | 60 W | 9000 lm | 150 lm/W | 4000 K | 562 x 200 x 108 mm | |
| LMSTPRO60W840T4 | 60 W | 9000 lm | 150 lm/W | 4000 K | 562 x 200 x 108 mm | |
| LMSTPRO90W840T3 | 90 W | 13,500 lm | 150 lm/W | 4000 K | 607 x 240 x 108 mm | |
| LMSTPRO90W840T4 | 90 W | 13,500 lm | 150 lm/W | 4000 K | 607 x 240 x 108 mm | |
| LMSTPRO120W840T3 | 120 W | 18,000 lm | 150 lm/W | 4000 K | 607 x 240 x 108 mm | |
| LMSTPRO120W840T4 | 120 W | 18,000 lm | 150 lm/W | 4000 K | 607 x 240 x 108 mm | |
| LMSTPRO150W840T3 | 150 W | 22,500 lm | 150 lm/W | 4000 K | 680 x 260 x 108 mm | |
| LMSTPRO150W840T4 | 150 W | 22,500 lm | 150 lm/W | 4000 K | 680 x 260 x 108 mm | |
| LMSTPRO180W840T3 | 180 W | 27,000 lm | 150 lm/W | 4000 K | 680 x 260 x 108 mm | |
| LMSTPRO180W840T4 | 180 W | 27,000 lm | 150 lm/W | 4000 K | 680 x 260 x 108 mm | |
| LMSTPRO200W840T3 | 200 W | 30,000 lm | 150 lm/W | 4000 K | 766 x 300 x 108 mm | |
| LMSTPRO200W840T4 | 200 W | 30,000 lm | 150 lm/W | 4000 K | 766 x 300 x 108 mm | |
| LMSTPRO240W840T3 | 240 W | 36,000 lm | 150 lm/W | 4000 K | 766 x 300 x 108 mm | |
| LMSTPRO240W840T4 | 240 W | 36,000 lm | 150 lm/W | 4000 K | 766 x 300 x 108 mm |

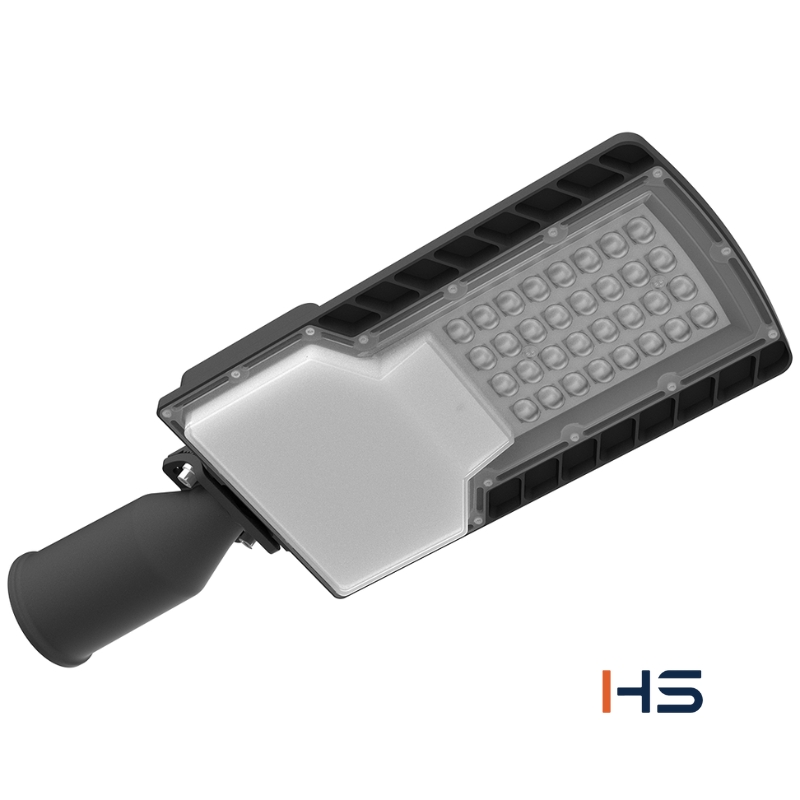

LUMINO PRO
Road and Urban
Applications
Area Lighting, Carpark, Road Lighting
Overview
The LUMINO Street Light Pro integrates cutting-edge technology and efficiency to deliver customised performance for a wide range of projects. Designed for illuminating area and streets, this luminaire offers adaptability and dependability.
Details
The LUMINO Street Light Pro integrates cutting-edge technology and efficiency to deliver customised performance for a wide range of projects. Designed for illuminating area and streets, this luminaire offers adaptability and dependability.
Perfectly integrated into smart city control
- Smart city ready with 7-pin NEMA socket as standard
- 0-10V dimming as standard
Fulfill various application
- Power range from 60W to 240W
- CCT available from 3000K to 5000K
- Up to 150 lm/W efficacy
- Flicker free
High reliability
- Independent 10KV surge protection
- Robust aluminum body
- IP66 and IK08 rated

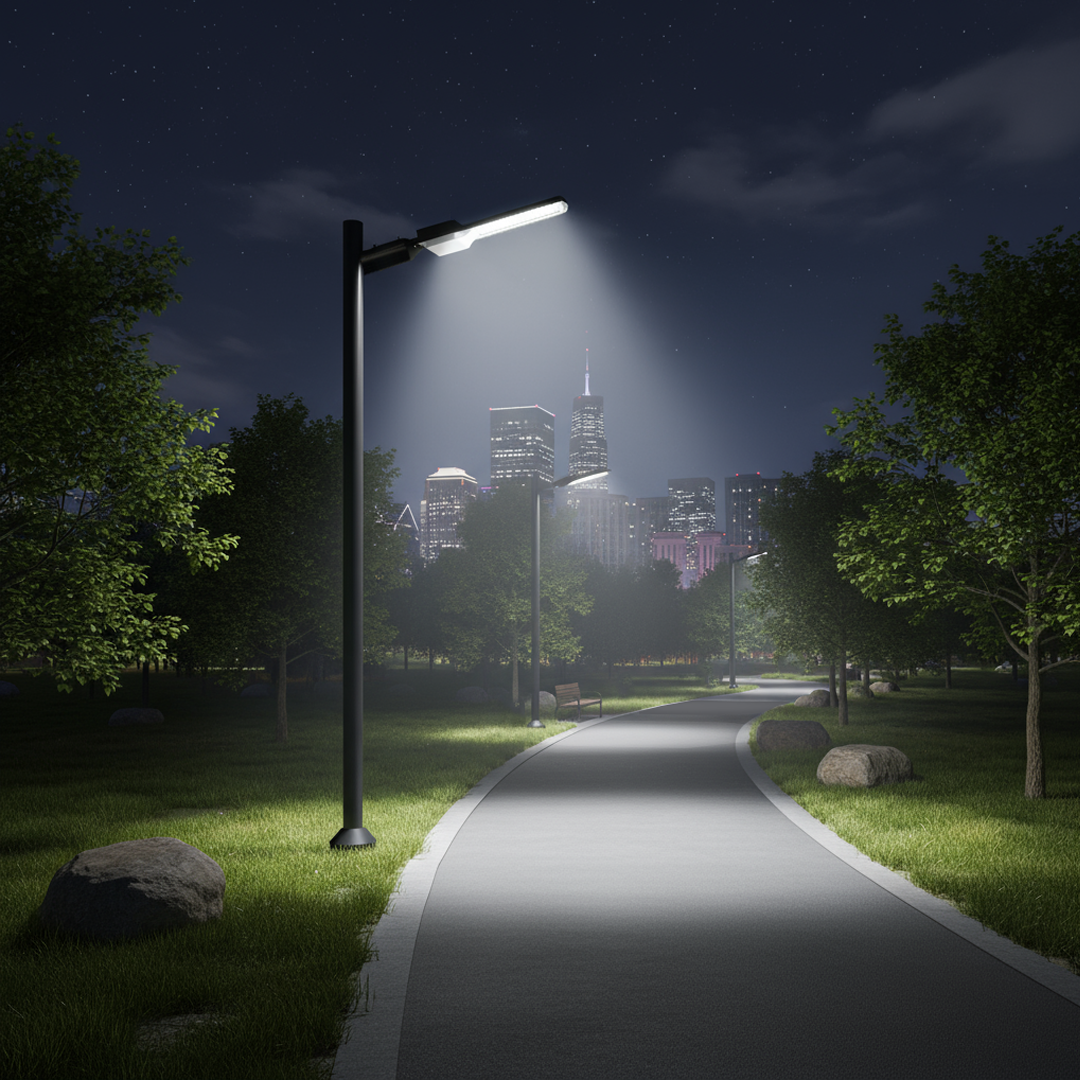

Applications
- General area lighting and street illumination
- City road and landscape lighting
- Pathways and parking lot
- Commercial district road lighting
- Industrial areas road lighting
Features & Benefits
7-pin Nema socket as standard
Smart city ready
Diecast aluminium body
High quality material used for excellent thermals
Wide range of options
8 light output options from 4,500 lms to 36,000 lms
Highly Reliable
Independent 10Kv surge protection
Adaptable Mounting
A wide range of mounting accessories available
7 Year Warranty
7 Year Product Warranty
Accessories

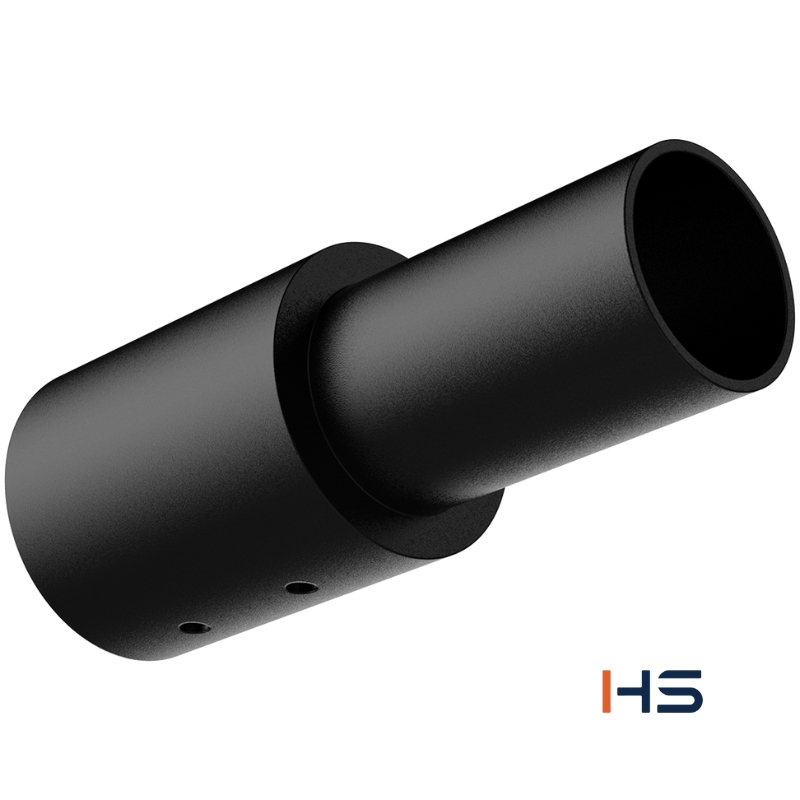

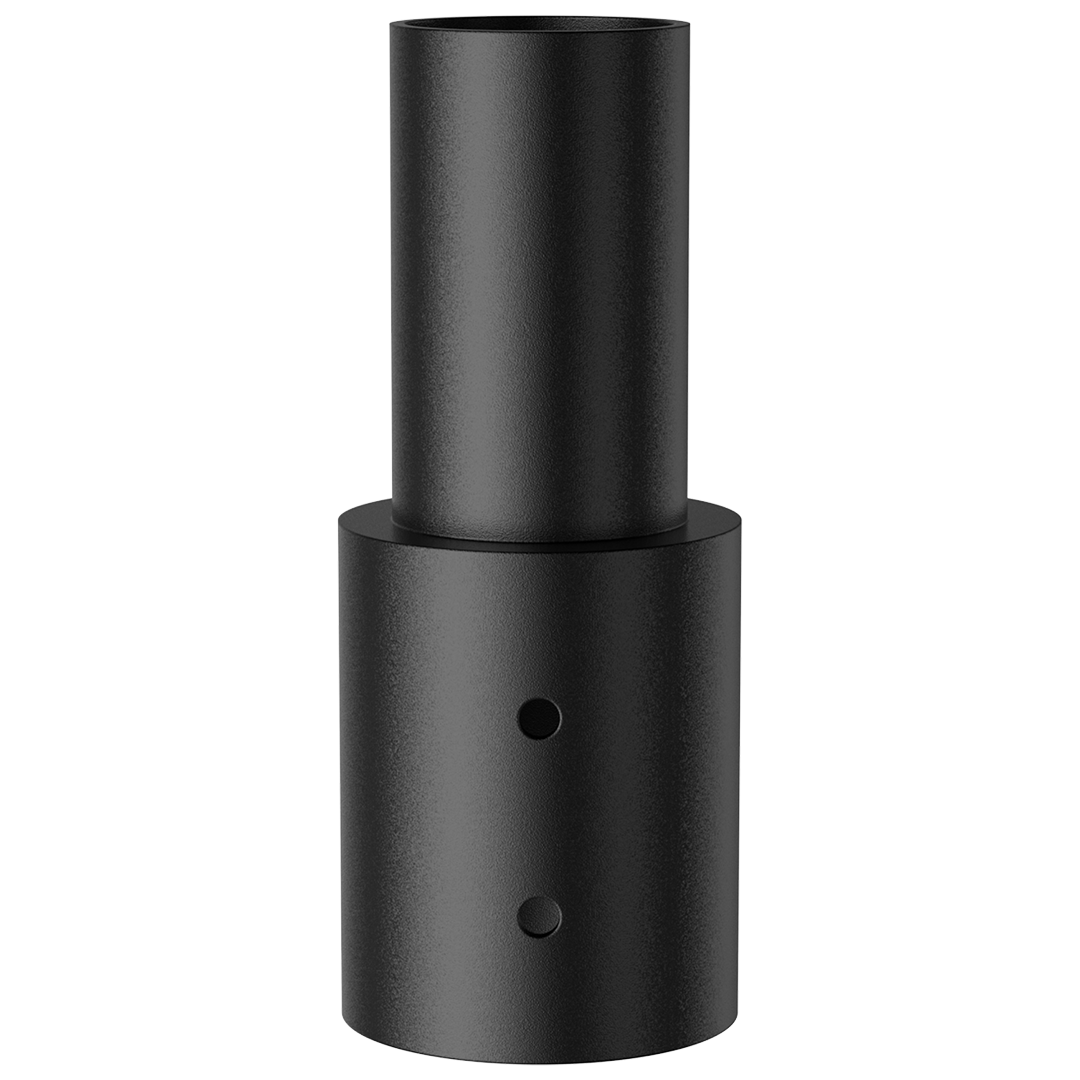

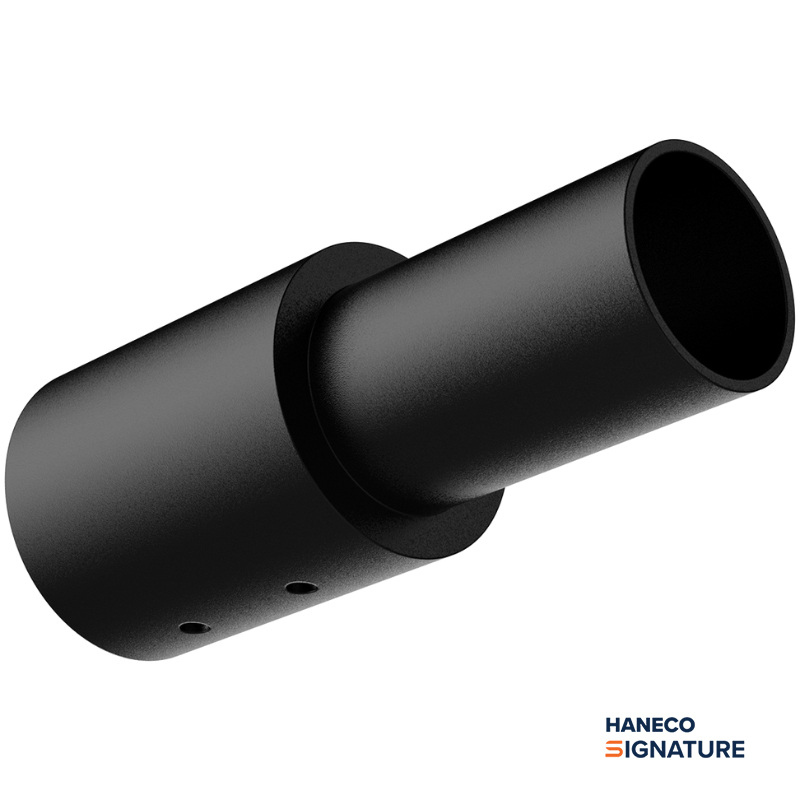

Mounting Supports (Road and Urban)
View Details
