| Product Code | Wattage | Lumen Output | Efficacy | CCT | Dimensions | Downloads |
|---|---|---|---|---|---|---|
| STAX30WG4 | 15 W 30 W | 2000 lm 3600 lm | 120 / 130 / 120 lm/W 110 / 120 / 110 lm/W | 3000 / 4000 / 5000 K | 155 x 124 x 30mm | |
| STAX50WG4 | 30 W 50 W | 4000 lm 6000 lm | 115 / 130 / 115 lm/W 110 / 120 / 110 lm/W | 3000 / 4000 / 5000 K | 210 x 168 x 30mm | |
| STAX100WG4 | 75 W 100 W | 9400 lm 12100 lm | 115 / 125 / 115 lm/W 110 / 120 / 110 lm/W | 3000 / 4000 / 5000 K | 275 x 220 x 35mm | |
| STAX200WG4 | 150 W 200 W | 16750 lm 22510 lm | 102 / 120 / 110 lm/W 97 / 115 / 105 lm/W | 3000 / 4000 / 5000 K | 336 x 266 x 39mm |
STAXG4
Spotlights and Floodlights
Compact and flexible
Applications
Shed,Carpark,Carport,Side of Building,Temporary Installations,General Industrial,Area Lighting
Overview
STAX G4 is a highly versatile and efficient LED floodlight that comes with various features. It has a selectable colour temperature option, a dual power version, and an optional PIR motion sensor, making it suitable for a wide range of applications. The outdoor floodlight is available in four power options - 15/30W, 30/50W, 75/100W, and 150/200W, providing ample light for any application. It has an IP66 and IK08 rating, making it durable and perfect for outdoor areas. The sleek diecast aluminium housing enhances the aesthetic design while also improving thermal characteristics. The integrated driver with cable and plug makes installation quick and easy. The adjustable gimbal increases versatility, allowing you to direct light where it is needed. It has a high ambient temperature rating (<45°C), making it ideal for use even in hot environments. The optional plug-in motion sensor is a great retrofit option to assist in energy usage or security lighting. It is KASTA compatible, with an aluminium body material and glass diffuser material. STAX G4 outdoor floodlights are perfect for various applications such as sheds, carports, building sides, carparks, area lighting, and general industrial areas. It comes with a 5-year warranty and optional accessories like STAX90D-BRKT-S (90° Bracket - Small), STAX90D-BRKT-L (90° Bracket - Large), and STAX-SENSOR (PIR Sensor).
Details
Introducing Haneco's STAX G4 outdoor floodlights - a versatile and efficient range of LED floodlights designed to meet various application needs. This dynamic lighting solution offers selectable colour temperature, dual power, and an optional PIR motion sensor providing adaptability and energy efficiency.
The STAX G4 is a testament to Haneco's commitment to innovation and functionality, catering to a wide range of settings with its versatile features. The STAX G4 range offers a variety of wattages across four models, ranging from 15W to 200W. This comprehensive family is tailored for residential, commercial, and industrial applications.
Illuminate your spaces with confidence and style as Haneco continues to lead the way in advancing the future of lighting technology. The STAX G4 floodlights use high-quality LED chips to produce a bright light output while consuming less energy than traditional halogen or metal halide floodlights.
STAX G4 floodlights are made from high-quality aluminium and have an IP66 rating, making them dust-proof and waterproof, thus suitable for outdoor applications. The floodlights are available in a variety of wattages and colour temperatures via dip switches, making them suitable for a wide range of applications. They can be mounted on walls, ceilings, or poles.
The STAX G4 outdoor floodlight comes with a 5-year warranty and optional accessories like STAX90D-BRKT-S (90° Bracket - Small), STAX90D-BRKT-L (90° Bracket - Large), and STAX-SENSOR (PIR Sensor). Illuminate your surroundings with confidence and precision using the STAX G4, a beacon of efficiency and reliability in outdoor lighting.
Features & Benefits
Tritone colour changeable
Provides the choice of light hues from a single luminaire
IP66 and IK08 rating
Durable construction and performance for outdoor areas
Power switchable
Adjust the light to suit the requirements
Choice of sizes to choose from
Adaptable to suit various requirements
Exceptional performance
High efficacy rating to promote energy saving
Extensive model range
Covers a diverse range of applications
Low profile design
Suitable for very shallow ceiling spaces
Sleek diecast aluminium housing
Improve asethetic design whilst improving thermal characteristics
Integrated driver with cable and plug
Provides quick and easy installation
Adjustable gimbal
Increased versatility to direct light where it is required
High ambient temperature rating (>40°C)
Long lasting in hot environments

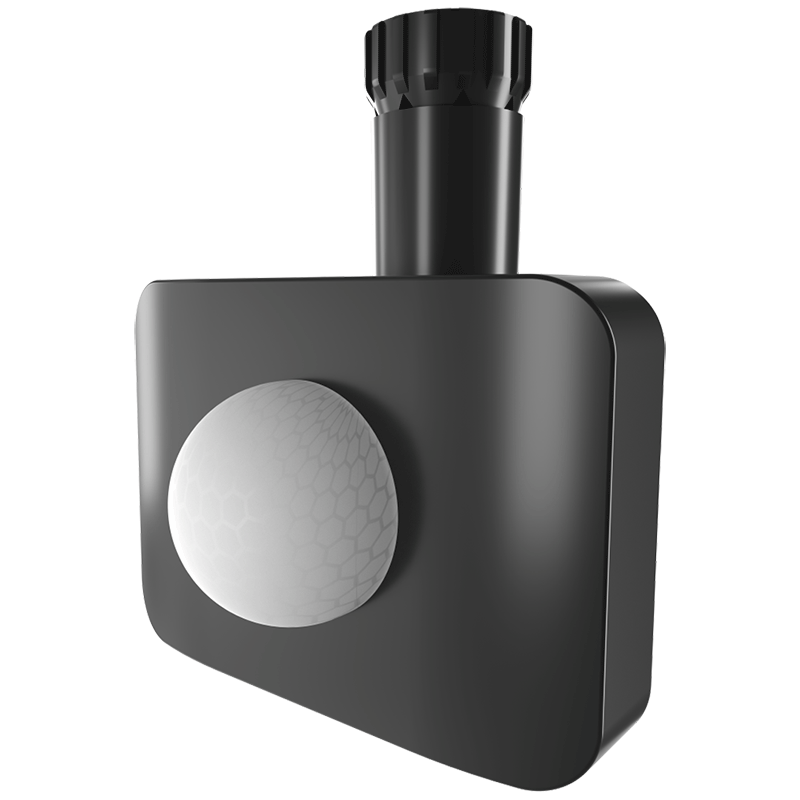

Optional plug in motion sensor
Retrofittable option to assist in energy usage or security lighting
Easily adjustable
Simple installation and adjustability
Large power options
Offering the right amount of light for the application
Accessories
Mounting Supports (Floodlights)
Haneco offers a range of mounting support accessories such as brackets, poles, suspension kits, surface mount frames...
View Details

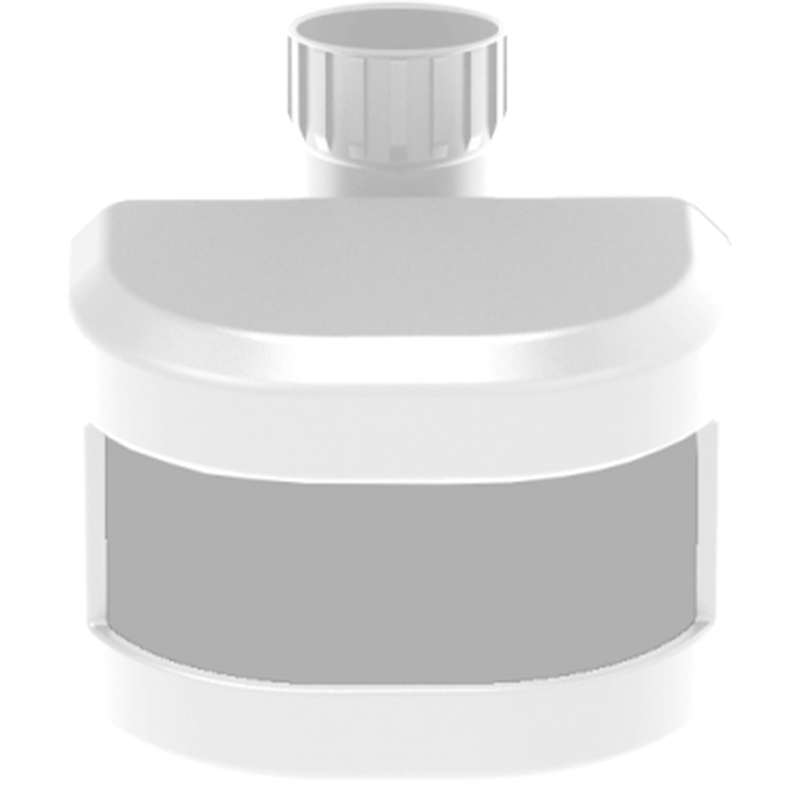

Motion Sensors (Floodlights)
