| Product Code | Wattage | Lumen Output | Efficacy | CCT | Dimensions | Downloads |
|---|---|---|---|---|---|---|
| UNO30W09WH | 30 W | 2500 / 2600 / 2500 lm | 80 / 83 / 80 lm/W | 3000 / 4000 / 5000 K | 907 x 69 x 87mm | |
| UNO40W12WH | 40 W | 3400 / 3500 / 3400 lm | 88 / 93 / 85 lm/W | 3000 / 4000 / 5000 K | 1204 x 69 x 87mm | |
| UNO50W15WH | 50 W | 4250 / 4350 / 4250 lm | 83 / 85 / 84 lm/W | 3000 / 4000 / 5000 K | 1500 x 69 x 87mm | |
| UNO30W09BK | 30 W | 2500 / 2600 / 2500 lm | 80 / 83 / 80 lm/W | 3000 / 4000 / 5000 K | 907 x 69 x 87mm | |
| UNO40W12BK | 40 W | 3400 / 3500 / 3400 lm | 88 / 93 / 85 lm/W | 3000 / 4000 / 5000 K | 1204 x 69 x 87mm | |
| UNO50W15BK | 50 W | 4250 / 4350 / 4250 lm | 83 / 85 / 84 lm/W | 3000 / 4000 / 5000 K | 1500 x 69 x 87mm |
UNO
Indoor Battens
Sleek and stylish
Applications
Hallways, Entrance, Accent / Display / Feature Lighting, Showrooms, Boardroom / Meeting Rooms, Function Areas, Food Courts, Retail Spaces, Hotel Common Areas, Restaurants / Cafes, Cocktail Lounge, Kitchen / Food Prep
Overview
UNO is a stylish and minimalistic aluminium profile luminaire, offering outstanding performance and design flexibility for architecturally demanding applications.
Details
UNO LED Batten: Minimalist Design Meets Maximum
Performance
The UNO Batten is a premium linear lighting solution that combines sleek aesthetics with exceptional functionality—perfect for architecturally demanding spaces. Its slim aluminium profile and elegant opal diffuser deliver a clean, modern look while ensuring uniform, glare-free illumination.
Key Features
- Tritone Colour Selectable – Choose warm, neutral, or cool white light from a single fitting for ultimate flexibility.

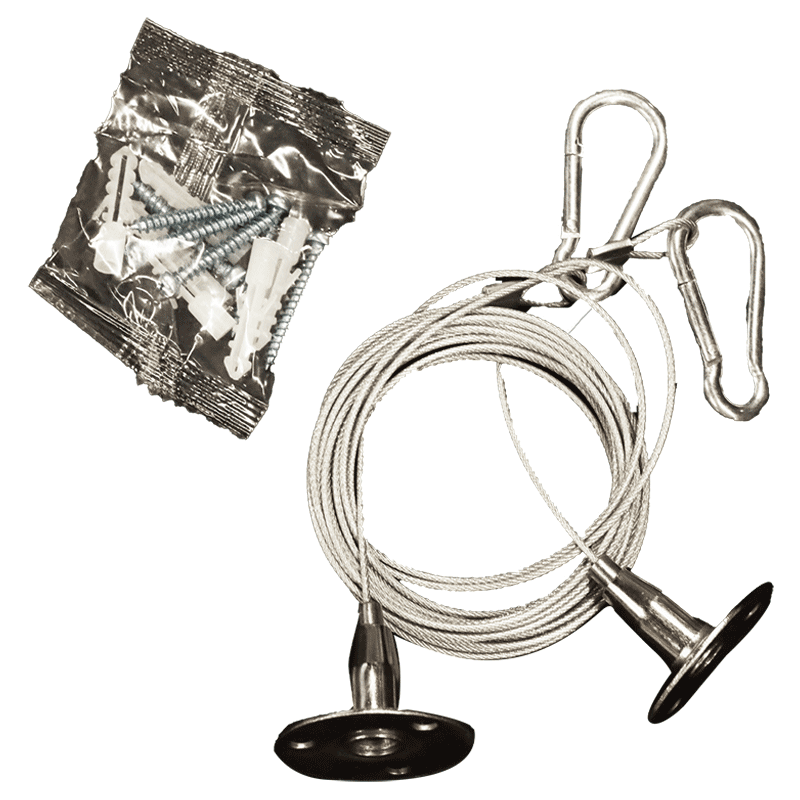

- Versatile Mounting Options – Surface mount or suspension installation adapts to diverse design requirements.
- Multiple Lengths – Available in 900 mm, 1200 mm, and 1500 mm to suit any space.
- Durable Build – High-quality, powder-coated aluminium extrusion ensures long-lasting performance.
- Inventory Simplification – Fewer SKUs needed thanks to adaptable features, reducing complexity for specifiers and installers.
Why UNO Indoor LED Batten?
- Architectural Appeal – Minimalist design enhances modern interiors.
- Design Freedom – Flexible mounting and selectable colour temperature expand application possibilities.
- Reliable Performance – Built for durability and consistent light quality.
Features & Benefits
Choice of colour finishes
Blend fitting into the existing environment seemlessly
HACCP approved
Suitable for food manufacturing areas
Excellent feature lighting option
Ideal for accent lighting
Modernised design
Provides high end appearance
Versatile mounting options
Expand the lighting possibilities with different mounting configurations
Tritone colour selectable
Provides the choice of light hues from a single luminaire
Easy terminal block access
Aids in improving the installation process
Painted aluminium housing
Enhances the premium look and feel
Choice of different lengths
Adaptable to suit various requirements
Narrow design
Built to be aesthetic with minimal space
High ambient temperature rating (>40°C)
Long lasting in hot environments
