| Product Code | Wattage | Lumen Output | Efficacy | CCT | Dimensions | Downloads |
|---|---|---|---|---|---|---|
| VISTA-LK4W03 | 4.5 W | 410 / 480 / 450 lm | 91 / 107 / 100 lm/W | 3000 / 4000 / 5700 K | 285 x 29 x 36mm | |
| VISTA-LK9W06 | 9 W | 810 / 1040 / 990 lm | 90 / 116 / 110 lm/W | 3000 / 4000 / 5700 K | 585 x 29 x 36mm | |
| VISTA-LK13W09 | 13 W | 1300 / 1490 / 1430 lm | 100 / 115 / 110 lm/W | 3000 / 4000 / 5700 K | 885 x 29 x 36mm | |
| VISTA-LK18W12 | 18 W | 1700 / 2040 / 2000 lm | 94 / 113 / 111 lm/W | 3000 / 4000 / 5700 K | 1185 x 29 x 36mm |
VISTALINKABLE
Battens
Slim and versatile
Applications
Accent / Display / Feature Lighting, Showrooms, Offices, Boardroom / Meeting Rooms, Function Areas, Food Courts, Retail Spaces, Restaurants / Cafes, Cocktail Lounge, Entrance, Kitchen / Food Prep
Overview
VISTA LINKABLE is a slim and versatile batten system. Compact and seamless connection makes it ideal for linear applications including accent, cove, shelve and under cabinet lighting. High CRI of >90 makes these ideal for retail shelving, displaying authentic merchandise colours.
Details
VISTA LINKABLE - a versatile and slim batten system perfect for linear lighting applications like accent, cove, shelve, and under-cabinet lighting. Its compact and seamless design makes it an excellent choice for displaying authentic merchandise colours in retail shelving with a high CRI of >90.
With tritone colour changeable options (4000K/4700K/5700K), you can choose from a range of light hues from a single luminaire, making it ideal for accent lighting. The versatile mounting options expand lighting possibilities with different configurations, and it can last a long time in hot environments thanks to its high ambient temperature rating (40°C>).

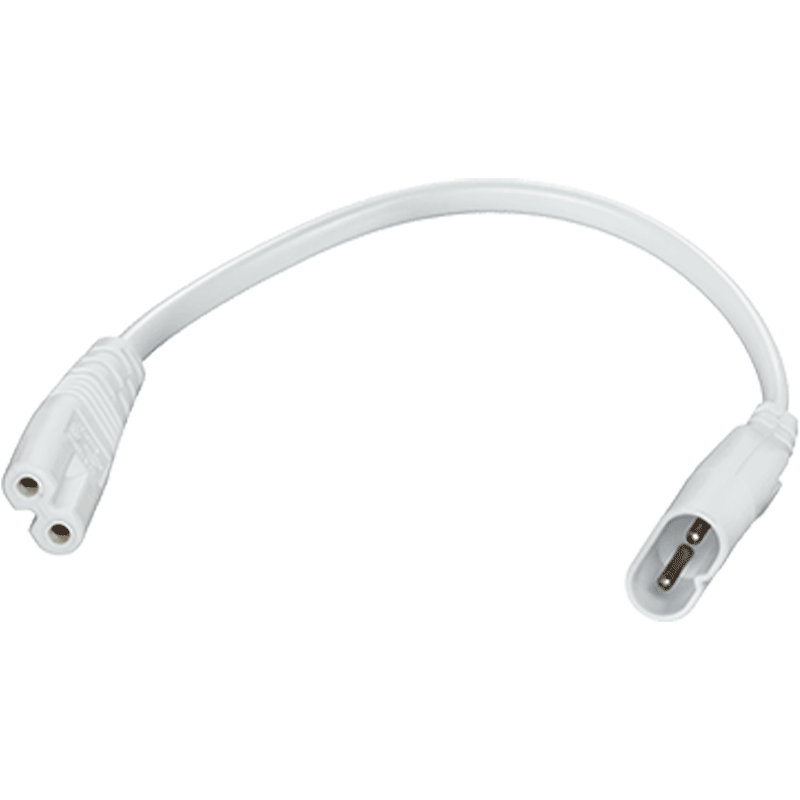

LINKABLE is HACCP-approved, making it suitable for food manufacturers, and has an IP20 rating. Additionally, there are numerous accessories available, such as flexible couplers, VISTA-LK4PCNTR, and other linkable battens. It even comes with a 5-year warranty for added peace of mind.
Features & Benefits
Tritone colour selectable
Provides the choice of light hues from a single luminaire
HACCP approved
Suitable for food manufacturing areas
Excellent feature lighting option
Ideal for accent lighting
Choice of different lengths
Adaptable to suit various requirements
Narrow design
Built to be aesthetic with minimal space
High ambient temperature rating (>40°C)
Long lasting in hot environments
Various accessories available
Tailor the luminaire to meet the application requirements
Easily adjustable
Simple installation and adjustability
