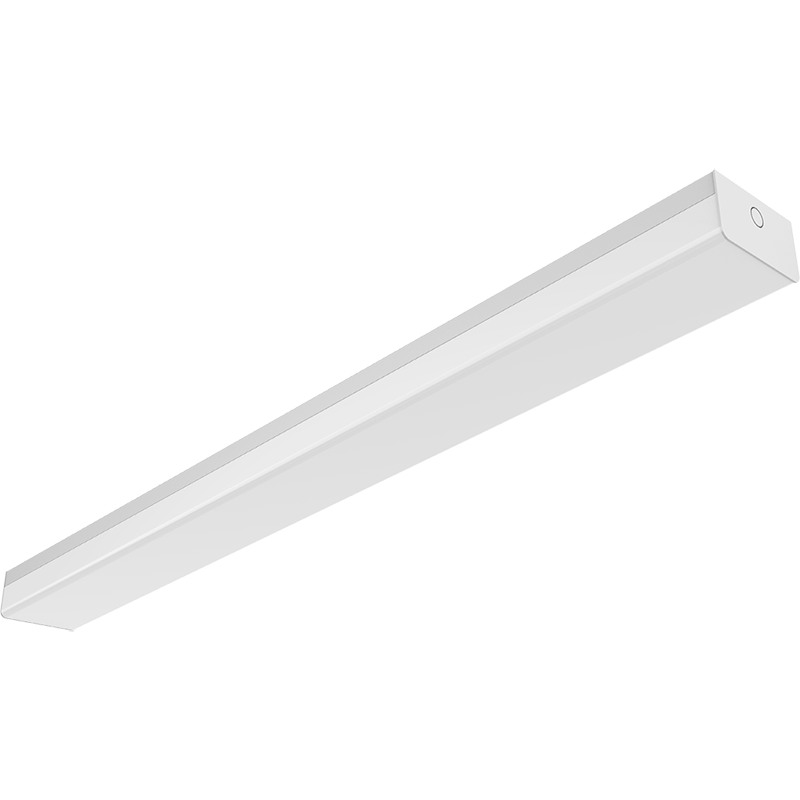

VISTA

Indoor Battens

Simple, efficient and flexible.

Applications

Garage, Shed, Offices, Education Facilities, Storage Facilities, Manufacturing Facilities, Indoor Recreation, General Industrial, Storage Rooms, Kitchen / Food Prep

Overview

When it comes to batten lighting, VISTA is a familiar name that relates to excellence. VISTA is the universal batten lighting to suit both residential and business environments alike for any application whether it is home storage areas or commercial kitchens. The range is further strengthened with optional emergency or sensor models available.

Find a Stockist

Details

Product Code	Wattage	Lumen Output	Efficacy	CCT	Dimensions	Downloads
VISTA20/40W12-TRI	20/24/29/34/40 W	20W: 2609/2742/2657 lm 24W: 3204/3415/3277 lm 29W: 3795/4070/3868 lm 34W: 4255/4623/4368 lm 40W: 4832/5298/4983 lm	20W: 145/156/146 lm/W 24W: 140/154/141 lm/W 29W: 135/150/135 lm/W 34W: 130/147/130 lm/W 40W: 125/143/125 lm/W	4000 / 4700 / 5700 K	1223 x 84 x 70mm	Datasheet Installation Guide
VISTA20/40W12-TRI-EM	20/24/29/34/40 W	20W: 2615/2749/2665 lm 24W: 3210/3419/3289 lm 29W: 3795/4071/3868 lm 34W: 4260/4628/4371 lm 40W: 4838/5318/5037 lm	20W: 124/134/125 lm/W 24W: 124/135/125 lm/W 29W: 122/135/122 lm/W 34W: 119/134/119 lm/W 40W: 116/132/117 lm/W	4000 / 4700 / 5700 K	1223 x 84 x 70mm	Datasheet Installation Guide
VISTA40W12-TRI-SS-EM	20/26/35/40 W	20W: 2586/2712/2664 lm 26W: 3374/3569/3470 lm 35W: 4318/4622/4428 lm 40W: 4758/5143/4892 lm	20W: 120/128/121 lm/W 26W: 119/129/120 lm/W 35W: 116/128/115 lm/W 40W: 113/126/112 lm/W	4000 / 4700 / 5700 K	1223 x 84 x 70mm	Datasheet Installation Guide
VISTA20W06-TRI	15/16/18/20 W	15W: 1875/2015/1928 lm 16W: 2049/2219/2109 lm 18W: 2202/2402/2270 lm 20W: 2391/2599/2436 lm	15W: 128/143/129 lm/W 16W: 126/141/126 lm/W 18W: 123/139/123 lm/W 20W: 121/137/120 lm/W	4000 / 4700 / 5700 K	616 x 84 x 70mm	Datasheet Installation Guide
VISTA20W06-TRI-EM	15/16/18/20 W	15W: 1767/1932/1885 lm 16W: 1912/2123/2063 lm 18W: 2060/2296/2212 lm 20W: 2200/2478/2375 lm	15W: 102/115/109 lm/W 16W: 100/116/108 lm/W 18W: 100/116/107 lm/W 20W: 98/116/106 lm/W	4000 / 4700 / 5700 K	616 x 84 x 70mm	Datasheet Installation Guide
VISTA60W15-TRI	28/36/44/51/60 W	28W: 3855/4084/3944 lm 36W: 4822/5157/4898 lm 44W: 5618/6109/5758 lm 51W: 6269/6851/6362 lm 60W: 6974/7698/7086 lm	28W: 143/156/143 lm/W 36W: 136/151/135 lm/W 44W: 129/146/128 lm/W 51W: 125/142/122 lm/W 60W: 119/137/116 lm/W	4000 / 4700 / 5700 K	1523 x 84 x 70mm	Datasheet Installation Guide
VISTA60W15-TRI-EM	28/36/44/51/60 W	28W: 3874/4091/3937 lm 36W: 4813/5168/4929 lm 44W: 5648/6117/5742 lm 51W: 6231/6861/6400 lm 60W: 7010/7719/6937 lm	28W: 129/140/129 lm/W 36W: 126/139/125 lm/W 44W: 122/136/120 lm/W 51W: 117/134/116 lm/W 60W: 114/131/113 lm/W	4000 / 4700 / 5700 K	1523 x 84 x 70mm	Datasheet Installation Guide
VISTA12-SS	20/26/35/40 W	20W: 2645/2748/2658 lm 26W: 3466/3628/3466 lm 35W: 4409/4677/4404 lm 40W: 4860/5203/4862 lm	20W: 141/151/141 lm/W 26W: 135/147/135 lm/W 35W: 126/141/126 lm/W 40W: 121/138/122 lm/W	4000 / 4700 / 5700 K	1223 x 84 x 70mm	Datasheet Installation Guide
VISTA12-DALI	40 W	4000 / 4200 / 4000 lm 2160 / 2200 / 2160 lm	110 / 115 / 110 lm/W 120 / 120 / 120 lm/W	4000 / 4700 / 5700 K	1221 x 84 x 70mm	Datasheet
VISTA12-EMDD	40 W	4600 / 4900 / 4600 lm	110 / 115 / 110 lm/W 120 / 120 / 120 lm/W	4000 / 5000 / 6500 K	1221 x 84 x 70mm	Datasheet

VISTA, the trusted name in LED battens, offers a simple, efficient, and flexible lighting solution for your entire indoor space. VISTA's extensive range, including emergency versions, covers a vast array of applications, seamlessly replacing conventional lighting.

From basic illumination to emergency backup, VISTA has you covered. Innovative features like Tritone and power switchable technology simplify user experience by allowing adjustment of color temperature and power output to create the perfect ambience.

For food manufacturing environments, VISTA offers HACCP-approved options to ensure hygiene compliance. Easy terminal block access facilitates quick installation, saving you time and effort.

VISTA's diverse range minimises the number of SKUs you need to manage, simplifying inventory control.

Emergency versions provide reliable backup lighting for safety and functionality during outages, while sensor versions promote energy conservation through occupancy-based light level adjustments. VISTA Indoor Battens - a smart, efficient, and versatile lighting solution.
