| Product Code | Wattage | Lumen Output | Efficacy | CCT | Dimensions | Downloads |
|---|---|---|---|---|---|---|
| MATX0312-EV | 28 W 32 W 36 W 40 W | 3000 / 3360 / 3210 lm 3374 / 3832 / 3623 lm 3946 / 4201 / 4290 lm 4222 / 4695 / 4514 lm | 109 / 124 / 115 lm/W 108 / 127 / 112 lm/W 109 / 123 / 118 lm/W 108 / 126 / 117 lm/W | 3000 / 4000 / 5000 K | 1195 x 295 x 33 mm | |
| MATX0606-EV | 28 W 32 W 36 W 40 W | 3249 / 3521 / 3284 lm 3647 / 4025 / 3696 lm 3948 / 4400 / 3984 lm 4269 / 4800 / 4280 lm | 113 / 128 / 112 lm/W 109 / 126 / 107 lm/W 106 / 124 / 104 lm/W 103 / 122 / 100 lm/W | 3000 / 4000 / 5000 K | 595 x 595 x 33 mm | |
| MATX0312-25-EV | 28 W | 3000 / 3360 / 3210 lm | 109 / 124 / 115 lm/W | 3000 / 4000 / 5000 K | 1195 x 295 x 33 mm | |
| MATX0606-25-EV | 28 W | 3249 / 3521 / 3284 lm | 113 / 128 / 112 lm/W | 3000 / 4000 / 5000 K | 595 x 595 x 33 mm |

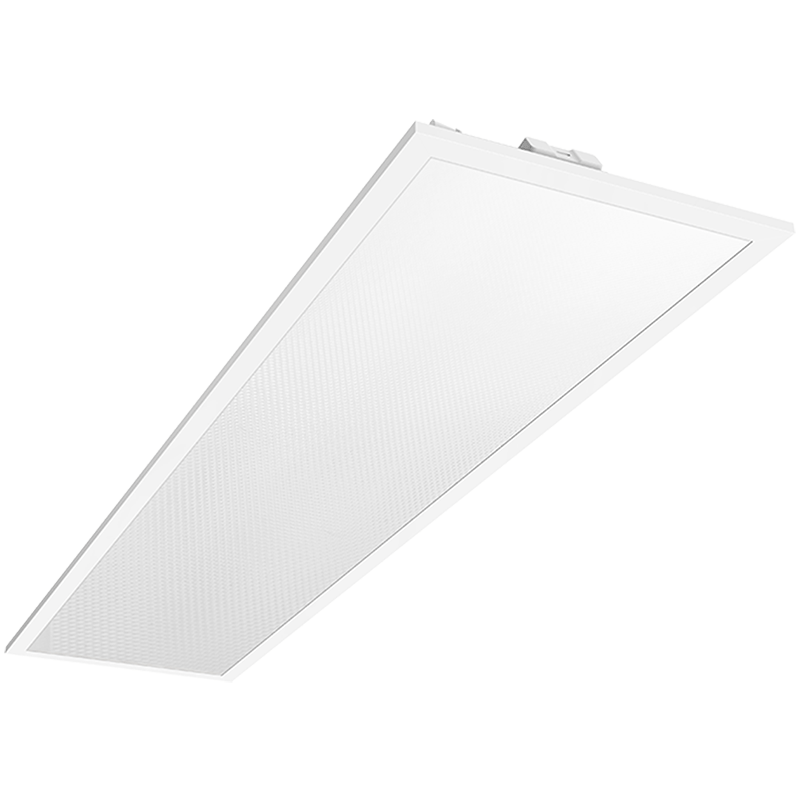

MATRIXEVO
Panels
Streamlined solution, competitive Value.
Applications

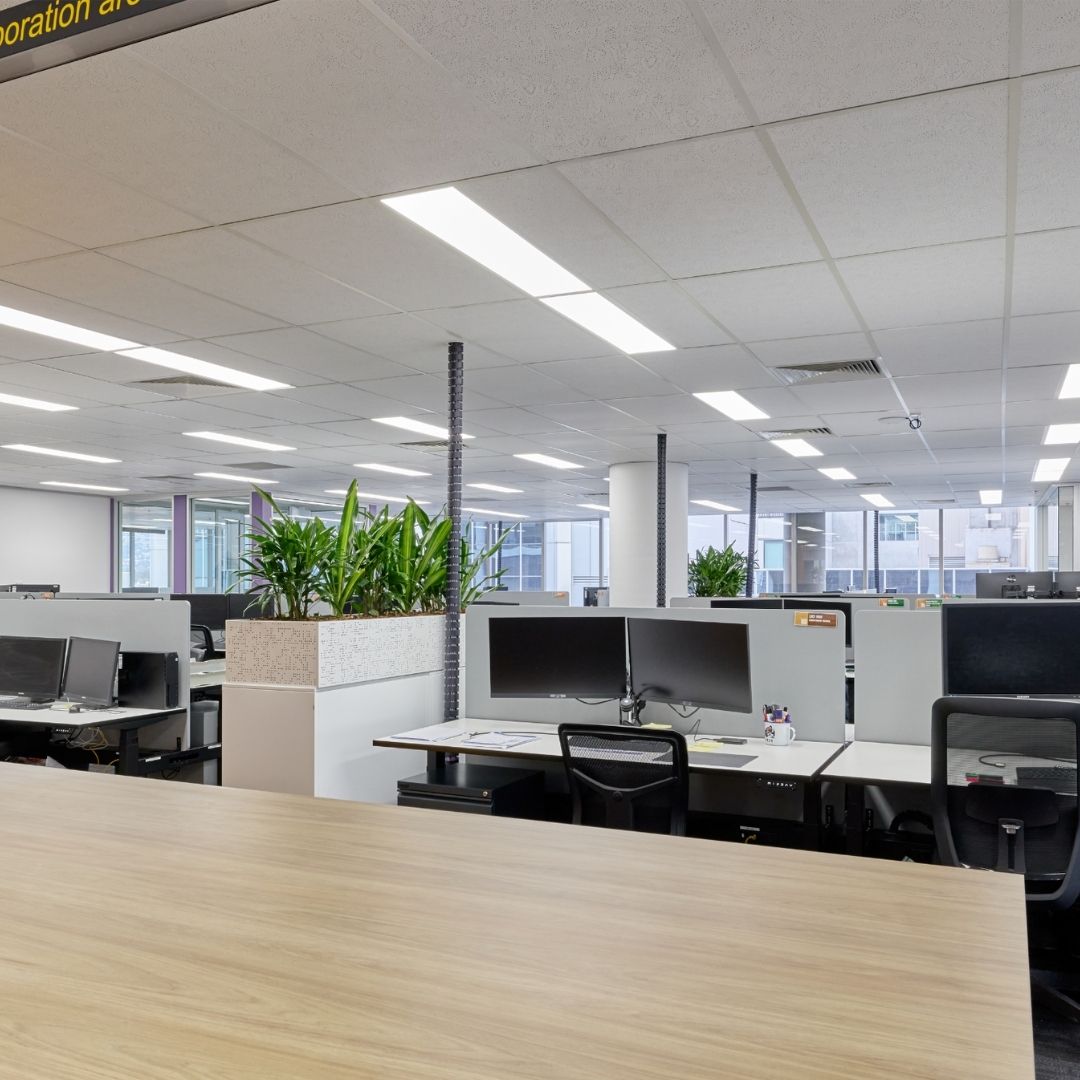

Showrooms, Offices, Boardroom / Meeting Rooms, Function Areas, Education Facilities, Storage Rooms
Overview
Introducing the MATRIX EVO, the ultimate lighting solution for discerning businesses. This highly efficient, tritone selectable backlit panel offers unparalleled versatility and performance, making it a perfect fit for any workspace.
Details
Elevate your workspace with the MATRIX EVO. This
cutting-edge backlit panel is more than just a light; it's a transformative
tool for your business. With its tri-tone functionality, you can effortlessly
adjust the atmosphere to suit any task or mood. From focused work sessions to
relaxed collaboration, the MATRIX EVO adapts to your needs.
Designed with efficiency and flexibility in mind, the MATRIX EVO offers:
- Tri-tone Selectable: Easily switch between warm, cool, and neutral light temperatures.
- Versatile Sizing: Choose from a range of sizes to fit any workspace perfectly.
- Effortless Installation: Designed for T-bar grid ceilings, installation is quick and easy.
- Reduced Inventory: Fewer SKUs simplify management and save costs.
- Enhanced Productivity: Create the optimal lighting environment for your team.
Discover the future of office illumination with the MATRIX EVO.
Features & Benefits
Tritone colour selectable
Provides the choice of light hues from a single luminaire
Flicker-free driver
Increase productivity and lowers eye strain
Extensive model range
Covers a diverse range of applications
Commercial panel light design
Suitable for suspended ceilings applications
Power switchable
Adjust the light to suit the requirements
Low profile design
Suitable for very shallow ceiling spaces
Painted aluminium housing
Enhances the premium look and feel
Modernised design
Provides high end appearance
Adaptable mounting possibilities
Choose which mounting option best suits the application
Choice of sizes to choose from
Adaptable to suit various requirements
Exceptional performance
High efficacy rating to promote energy saving
High ambient temperature rating (>40°C)
Long lasting in hot environments
Optional DALI converter accessory available
Designed to integrate into a larger ecosystems.
Optional DALI model available
Designed to integrate into a larger ecosystems.
Large power options
Offering the right amount of light for the application
