| Product Code | Wattage | Lumen Output | Efficacy | CCT | Dimensions | Downloads |
|---|---|---|---|---|---|---|
| TRIPROOF20/40W12-TRI | 20 W 40 W | 2230 / 2250 / 1970 lm 4090 / 4410 / 4050 lm | 111 / 113 / 98 lm/W 102 / 110 / 101 lm/W | 4000 / 5000 / 6500 K | 1215 x 116 x 74 mm | |
| TRIPROOF20/40W12-TRI-EM | 20 W 40 W | 2230 / 2250 / 1970 lm 4090 / 4410 / 4050 lm | 111 / 113 / 98 lm/W 102 / 110 / 101 lm/W | 4000 / 5000 / 6500 K | 1215 x 116 x 74 mm | |
| TRIPROOF40W12-TRI-SS-EM | 40 W | 4090 / 4410 / 4050 lm | 102 / 110 / 101 lm/W | 4000 / 5000 / 6500 K | 1215 x 116 x 74 mm | |
| TRIPROOF20W06-TRI | 20 W | 1850 / 1990 / 1850 lm | 93 / 100 / 93 lm/W | 4000 / 5000 / 6500 K | 618 x 116 x 74 mm | |
| TRIPROOF20W06-TRI-EM | 20 W | 1850 / 1990 / 1850 lm | 93 / 100 / 93 lm/W | 4000 / 5000 / 6500 K | 618 x 116 x 74 mm | |
| TRIPROOF60W15-TRI | 60 W | 5600 / 6000 / 5700 lm | 93 / 100 / 95 lm/W | 4000 / 5000 / 6500 K | 1515 x 116 x 74 mm | |
| TRIPROOF60W15-TRI-EM | 60 W | 5600 / 6000 / 5700 lm | 93 / 100 / 95 lm/W | 4000 / 5000 / 6500 K | 1515 x 116 x 74 mm | |
| TRIPROOF40W12-TRI-DIM | 20 W 40 W | 2230 / 2250 / 1970 lm 4090 / 4410 / 4050 lm | 111 / 113 / 98 lm/W 102 / 110 / 101 lm/W | 4000 / 5000 / 6500 K | 1215 x 116 x 74 mm | |
| TRIPROOF12-SS | 18 W 36 W | 2200 / 2300 / 2200 lm 4100 / 4300 / 4100 lm | 120 / 130 / 120 lm/W 102 / 110 / 101 lm/W | 4000 / 5000 / 6500 K | 1220 x 102 x 75 mm | |
| TRIPROOF12-DALI | 40 W | 4600 / 4900 / 4500 lm | 115 / 123 / 114 lm/W | 4000 / 5000 / 6500 K | 1220 x 102 x 75 mm | |
| TRIPROOF12-EMDD | 40 W | 4100 / 4300 / 4100 lm | 97 / 107 / 97 lm/W | 4000 / 5000 / 6500 K | 1220 x 102 x 75 mm |

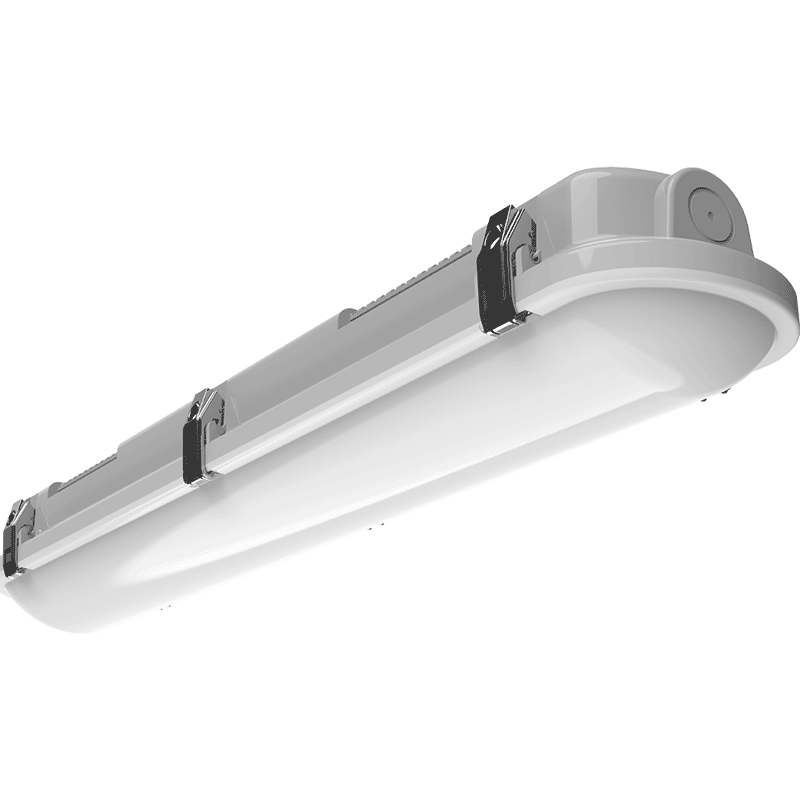

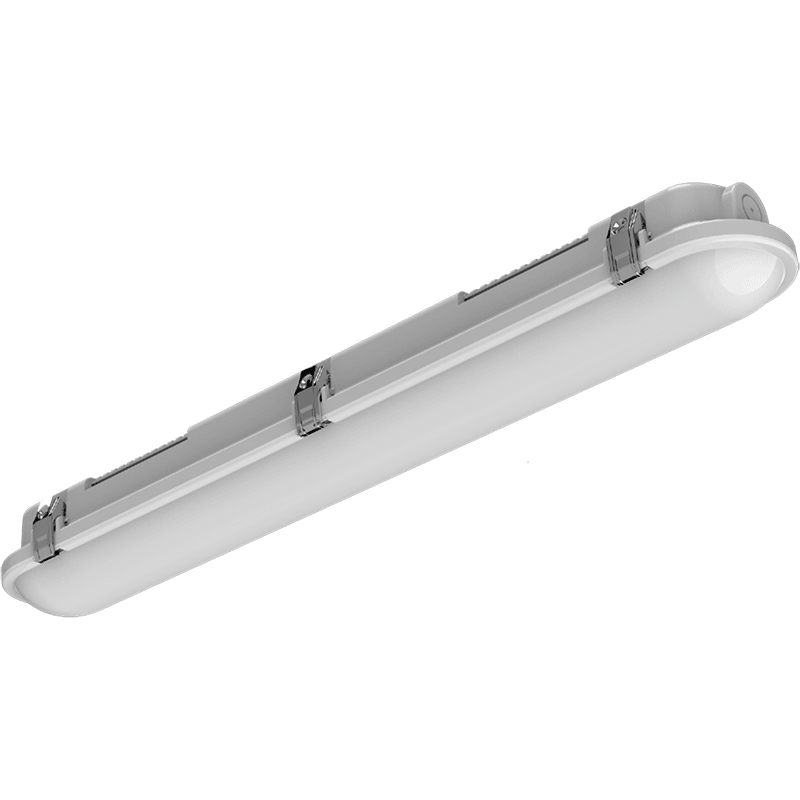

TRIPROOF
Battens
Tried and trusted design.
Applications
Kitchen / Food Prep, Balconies / Patios / Verandahs, Awnings, Garage, Shed, Carpark, Carport, Side of Building, Storage Facilities, Storage Rooms, Hangers, Manufacturing Facilities, Public Facilities, Temporary Installations, Cool Rooms, Outdoor Recreation, Indoor Recreation, General Industrial, Area Lighting
Overview
TRIPROOF are weatherproof LED battens with a striking robust design and suitability for higher ambient temperatures. HACCP approval makes them the perfect choice for food and beverage manufacturing applications.
Details
Illuminate your space with confidence using TRIPROOF LED battens. These weatherproof lighting solutions have a robust design, exceptional performance, and HACCP approval. TRIPROOF LED battens are perfect for demanding industrial environments and food and beverage manufacturing facilities. The weatherproof battens feature Emergency versions that provide safety in case of power outages. In addition, they also feature DALI dimmable models for dimming options.
Experience the versatility of tritone colour changeable capability, which allows you to effortlessly customize the lighting ambience to suit your needs. Whether you require a warm and inviting glow or a vibrant and dynamic atmosphere, TRIPROOF offers a range of color options to enhance any environment.
TRIPROOF LED battens feature an IP65 and IK08 rating, which protects against dust, water, and impact. This robust construction ensures durability and reliable performance, even in challenging outdoor and industrial environments. With their high ambient temperature rating of 40°C, TRIPROOF LED battens perform reliably even in demanding conditions.
For added security, TRIPROOF LED battens come with tamper-proof screws, preventing unauthorized access and ensuring the integrity of the installation. This feature enhances the safety and protection of the lighting system. Additionally, they come with an emergency version and also feature a DALI dimmable constant driver.
TRIPROOF LED battens have HACCP approval, meeting the stringent standards for food and beverage manufacturing. They are designed to maintain hygiene and safety in sensitive environments, making them the ideal lighting choice for facilities that require adherence to HACCP guidelines.
Features & Benefits
Tritone colour selectable
Provides the choice of light hues from a single luminaire
IP65 and IK08 rating
Ideal for outdoor applications
HACCP approved (Model Dependent)
Suitable for food manufacturing areas
Durable UV stabilised polycarbonate
Long lasting body for outdoor installations
Simple 2 piece flip-open design
Provides quick & easy installation
Power switchable (Model Dependent)
Adjust the light to suit the requirements
Easy terminal block access
Aids in improving the installation process
Emergency back up battery (Model Dependent)
Provides safety in case of power outages
Sensor activation (Model Dependent)
Improve power conservation when not in use
Extensive model range
Covers a diverse range of applications
Adaptable mounting possibilities
Choose which mounting option best suits the application
Choice of different lengths
Adaptable to suit various requirements
Tamperproof screws
Vandal resistant security
High ambient temperature rating (>40°C)
Long lasting in hot environments
Stainless Steel (316) clips (Model Dependent)
Anti-corrosive material to aid in longevity in high corrosive areas
