| Product Code | Wattage | Lumen Output | Efficacy | CCT | Dimensions | Downloads |
|---|---|---|---|---|---|---|
| DN20WRND-TRI | 20 W | 2050 / 2050 / 1890 lm | 103 / 103 / 94 lm/W | 3000 / 4000 / 5000 K | Ø275 x 80 mm | |
| DN30WRND-TRI | 30 W | 2760 / 3000 / 2770 lm | 92 / 100 / 92 lm/W | 3000 / 4000 / 5000 K | Ø350 x 110 mm | |
| DN16WOVL-TRI | 16 W | 1320 / 1500 / 1400 lm | 83 / 94 / 87 lm/W | 3000 / 4000 / 5000 K | 280 x 185 x 100 mm | |
| DN16WOVL-TRI-MS | 16 W | 1320 / 1500 / 1400 lm | 83 / 94 / 87 lm/W | 3000 / 4000 / 5000 K | 280 x 185 x 100 mm | |
| DN20WRND-TRI-MS | 20 W | 2050 / 2050 / 1890 lm | 103 / 103 / 94 lm/W | 3000 / 4000 / 5000 K | Ø275 x 80 mm | |
| DN20WRND-TRI-EM | 20 W | 2050 / 2050 / 1890 lm | 103 / 103 / 94 lm/W | 3000 / 4000 / 5000 K | Ø275 x 80 mm | |
| DN20WRND-TRI-MS-EM | 20 W | 2050 / 2050 / 1890 lm | 103 / 103 / 94 lm/W | 3000 / 4000 / 5000 K | Ø275 x 80 mm | |
| DN30WRND-TRI-MS | 30 W | 2760 / 3000 / 2770 lm | 92 / 100 / 92 lm/W | 3000 / 4000 / 5000 K | Ø350 x 110 mm | |
| DN30WRND-TRI-EM | 30 W | 2760 / 3000 / 2770 lm | 92 / 100 / 92 lm/W | 3000 / 4000 / 5000 K | Ø350 x 110 mm | |
| DN30WRND-TRI-MS-EM | 30 W | 2760 / 3000 / 2770 lm | 92 / 100 / 92 lm/W | 3000 / 4000 / 5000 K | Ø350 x 110 mm |

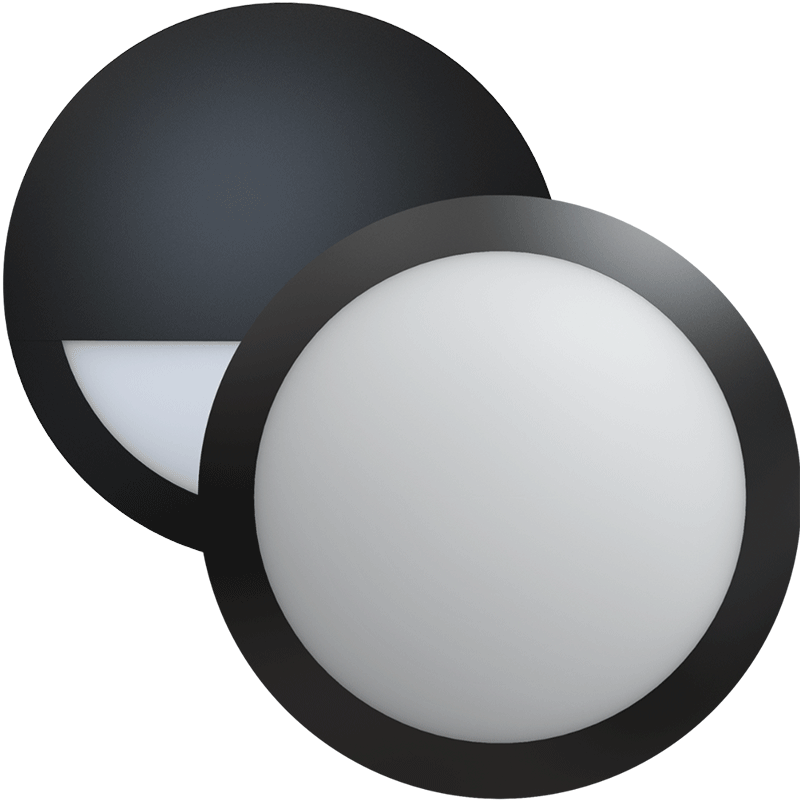

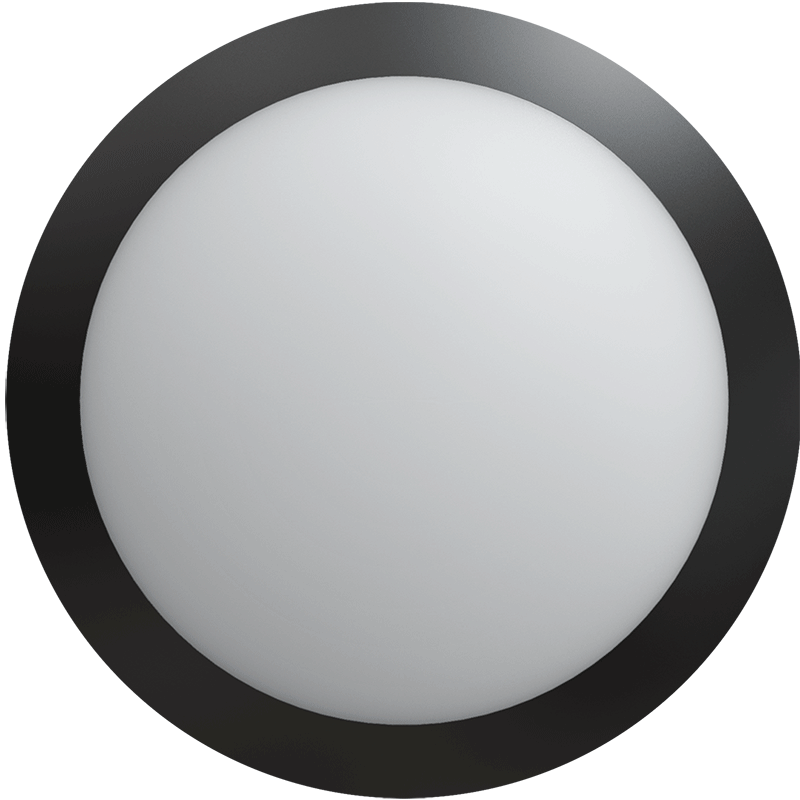

DAWN
Bulkheads
Contemporary and versatile
Applications
Staircase, Side of Building, Carpark, Area Lighting
Overview
DAWN is a range of contemporary bulkheads available in various shapes, wattages as well as sensor and emergency options. Its IP66 and IK10 rating, as well as a huge variety of accessories, make it ideal for outdoor applications such as apartment buildings, schools and public areas.
Details
Introducing DAWN, a versatile range of contemporary bulkheads designed to conquer the demands of outdoor lighting.
Unmatched Versatility: DAWN offers a vast selection of shapes, wattages, and sensor/emergency options, ensuring you can find the perfect solution for any outdoor application, from apartment buildings and schools to public walkways.
Built to Endure: DAWN boasts an impressive IP66 and IK10 rating, guaranteeing exceptional weather resistance and superior vandal resistance, making it a reliable choice for even the most challenging environments.
Simplified Inventory Management: The extensive DAWN range minimizes the number of SKUs you need to manage, streamlining your inventory control.
Effortless Installation: A large, installer-friendly terminal block facilitates a quick and hassle-free installation process, saving you time and effort.
Enhanced Security and Safety: Optional microwave PIR and daylight sensor options provide added security and promote energy efficiency by automatically adjusting lighting based on occupancy and ambient light levels.
DAWN - the perfect blend of style, durability, and functionality for all your outdoor lighting needs.
Features & Benefits
Tritone colour selectable
Provides the choice of light hues from a single luminaire
IP66 and IK10 rating
Robust housing to withstand damage
Easy terminal block access
Aids in improving the installation process
Extensive model range
Covers a diverse range of applications
Choice of sizes to choose from
Adaptable to suit various requirements
Emergency back up battery (Model Dependent)
Provides safety in case of power outages
Sensor activation (Model Dependent)
Improve power conservation when not in use
Painted aluminium housing
Enhances the premium look and feel
High ambient temperature rating (>40°C)
Long lasting in hot environments
Various accessories available
Tailor the luminaire to meet the application requirements
IES File
