| Product Code | Wattage | Lumen Output | Efficacy | CCT | Dimensions | Downloads |
|---|---|---|---|---|---|---|
| DURA-12 | 18 W 25 W 30 W 36 W | 2425 / 2474 / 2474 lm 3089 / 3242 / 3083 lm 3706 / 3917 / 3726 lm 4318 / 4627 / 4367 lm | 135 / 137 / 137 lm/W 124 / 130 / 123 lm/W 124 / 131 / 124 lm/W 120 / 129 / 121 lm/W | 4000 / 4500 / 5000 K | 1220 x 102 x 75 mm | |
| DURA-12-EM | 18 W 25 W 30 W 36 W | 2425 / 2474 / 2474 lm 3089 / 3242 / 3083 lm 3706 / 3917 / 3726 lm 4318 / 4627 / 4367 lm | 135 / 137 / 137 lm/W 124 / 130 / 123 lm/W 124 / 131 / 124 lm/W 120 / 129 / 121 lm/W | 4000 / 4500 / 5000 K | 1220 x 102 x 75 mm | |
| DURA-06 | 10 W 13 W 15 W 18 W | 1387 / 1431 / 1386 lm 1693 / 1768 / 1671 lm 1953 / 2050 / 1921 lm 2155 / 2356 / 2177 lm | 139 / 143 / 139 lm/W 136 / 129 / 130 lm/W 130 / 137 / 128 lm/W 120 / 131 / 121 lm/W | 4000 / 4500 / 5000 K | 655 x 102 x 75 mm | |
| DURA-06-EM | 10 W 13 W 15 W 18 W | 1387 / 1431 / 1386 lm 1693 / 1768 / 1671 lm 1953 / 2050 / 1921 lm 2155 / 2356 / 2177 lm | 139 / 143 / 139 lm/W 136 / 129 / 130 lm/W 130 / 137 / 128 lm/W 120 / 131 / 121 lm/W | 4000 / 4500 / 5000 K | 655 x 102 x 75 mm | |
| DURA-06-MS | 10 W 13 W 15 W 18 W | 1387 / 1431 / 1386 lm 1693 / 1768 / 1671 lm 1953 / 2050 / 1921 lm 2155 / 2356 / 2177 lm | 139 / 143 / 139 lm/W 136 / 129 / 130 lm/W 130 / 137 / 128 lm/W 120 / 131 / 121 lm/W | 4000 / 4500 / 5000 K | 655 x 102 x 75 mm | |
| DURA-06-EM-MS | 10 W 13 W 15 W 18 W | 1387 / 1431 / 1386 lm 1693 / 1768 / 1671 lm 1953 / 2050 / 1921 lm 2155 / 2356 / 2177 lm | 139 / 143 / 139 lm/W 136 / 129 / 130 lm/W 130 / 137 / 128 lm/W 120 / 131 / 121 lm/W | 4000 / 4500 / 5000 K | 655 x 102 x 75 mm | |
| DURA-12-MS | 18 W 25 W 30 W 36 W | 2425 / 2474 / 2474 lm 3089 / 3242 / 3083 lm 3706 / 3917 / 3726 lm 4318 / 4627 / 4367 lm | 135 / 137 / 137 lm/W 124 / 130 / 123 lm/W 124 / 131 / 124 lm/W 120 / 129 / 121 lm/W | 4000 / 4500 / 5000 K | 1220 x 102 x 75 mm | |
| DURA-12-EM-MS | 18 W 25 W 30 W 36 W | 2425 / 2474 / 2474 lm 3089 / 3242 / 3083 lm 3706 / 3917 / 3726 lm 4318 / 4627 / 4367 lm | 135 / 137 / 137 lm/W 124 / 130 / 123 lm/W 124 / 131 / 124 lm/W 120 / 129 / 121 lm/W | 4000 / 4500 / 5000 K | 1220 x 102 x 75 mm |

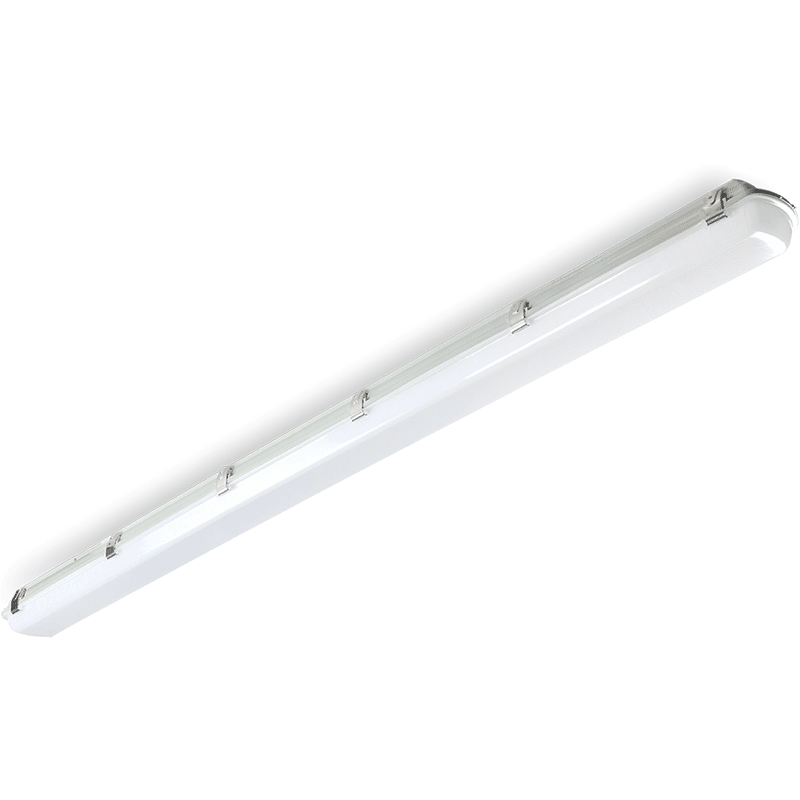

DURA
Battens
Robust construction for harsh environments.
Applications
Kitchen / Food Prep, Balconies / Patios / Verandahs, Awnings, Garage, Shed, Side of Building, Carpark, Carport, Storage Facilities, Storage Rooms, Warehouse, Manufacturing Facilities, Hangers, Public Facilities, Temporary Installations, General Industrial
Overview
The DURA batten features IP65 ingress protection, IK08 impact resistance which makes it the right choice for industrial and utility-type applications such as car parks, workshops, storerooms and back of house areas. Featuring a unique foldable structure and two-piece design for ease of installation.
Details
Introducing the DURA batten - a powerful and versatile lighting solution designed for industrial and utility-type applications. With its exceptional features and reliable performance, the DURA batten is perfect for demanding environments like car parks, workshops, storerooms, and back-of-house areas.
Experience the versatility of tritone color changeable capability that allows you to customize the lighting ambience effortlessly to match your needs. The DURA batten features a range of color options, so whether you want a warm and inviting glow or a vibrant and dynamic atmosphere, it can enhance any environment.
The DURA batten has an IP65 ingress protection rating, ensuring reliable performance even in challenging environments. With its IK08 impact resistance, it can withstand accidental bumps and impacts, providing durability and longevity.
The DURA batten adapts effortlessly to varying power requirements with its power switchable options, making it compatible with a wide range of installations and allowing efficient energy management.
HACCP approval makes the DURA batten the perfect choice for industrial and utility-type applications where hygiene and safety are paramount. It meets the stringent standards for areas that require adherence to HACCP guidelines, ensuring compliance and peace of mind.
The DURA batten provides easy terminal block access, simplifying installation and maintenance processes. This feature ensures convenience and efficiency, saving time and effort during setup and servicing.
Equipped with sensor activation, the DURA batten offers energy-efficient lighting control. The built-in sensors allow for automatic lighting activation, optimizing energy usage by activating the lights only when needed.
The weatherproof batten also comes with an emergency (EM) model that includes a LiFePO4 backup battery, providing safety in case of power outages.
Features & Benefits
Tritone colour selectable
Provides the choice of light hues from a single luminaire
IP65 and IK08 rating
Ideal for outdoor applications
Power switchable
Adjust the light to suit the requirements
Extensive model range
Covers a diverse range of applications
Exceptional performance
High efficacy rating to promote energy saving
HACCP approved (Model Dependent)
Suitable for food manufacturing areas
Easy terminal block access
Aids in improving the installation process
Emergency back up battery (Model Dependent)
Provides safety in case of power outages
Sensor activation (Model Dependent)
Improve power conservation when not in use
Adaptable mounting possibilities
Choose which mounting option best suits the application
Choice of different lengths
Adaptable to suit various requirements
Durable UV stabilised polycarbonate
Long lasting body for outdoor installations
Tamperproof screws
Vandal resistant security
Stainless Steel (301) clips
Anti-corrosive material for longevity
Large power options
Offering the right amount of light for the application
